Power & Control Transformers
Engineered for precision and durability. Our industrial transformers deliver stable power isolation and voltage step-down for critical automation circuits.
Custom transformers available — We build any VA rating, custom primary/secondary voltages & tap configurations. No MOQ required.
Capacity Range
Broad range to support micro-controllers to heavy machine load isolation.
Voltages
Custom tap configurations available upon request for specific factory requirements.
Insulation Class
High thermal tolerance ensuring stability in continuous-duty industrial applications.

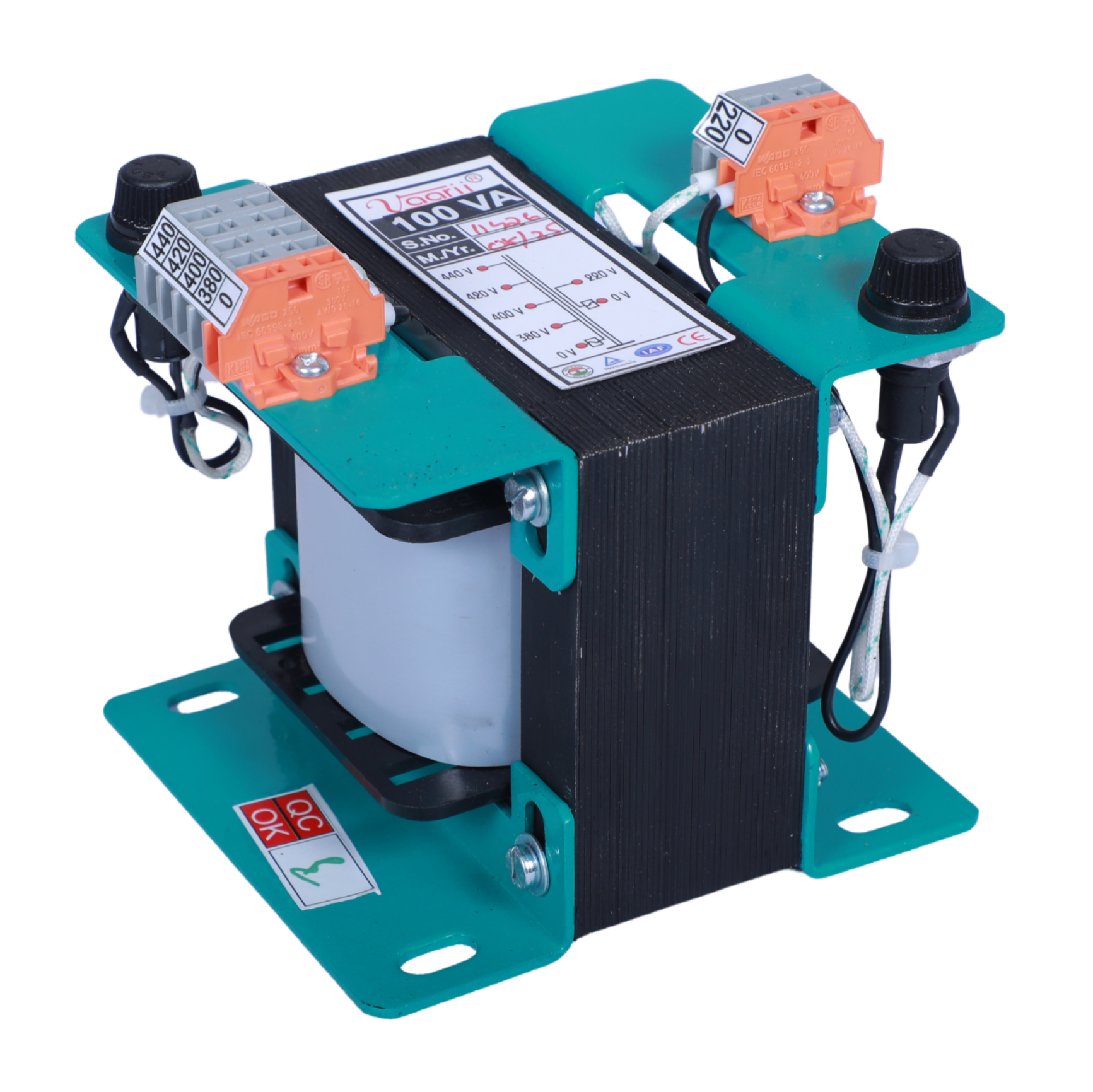

Control Transformers
Single and three-phase control transformers designed for stepping down voltages in industrial machine panels with high inrush current capabilities.
Control Transformers
12 models available
| Model | Rating | Primary | Secondary | Insulation | Action |
|---|---|---|---|---|---|
| SVATRANS40 | 40 VA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS50 | 50 VA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS100 | 100 VA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS150 | 150 VA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS200 | 200 VA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS250 | 250 VA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS300 | 300 VA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS350 | 350 VA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS500 | 500 VA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS750 | 750 VA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS1000 | 1 KVA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |
| SVATRANS2000 | 2 KVA | 0, 110, 230, 380, 415, 440 | 0, 24, 36, 48, 110, 230 | F Class | Viewarrow_forward |

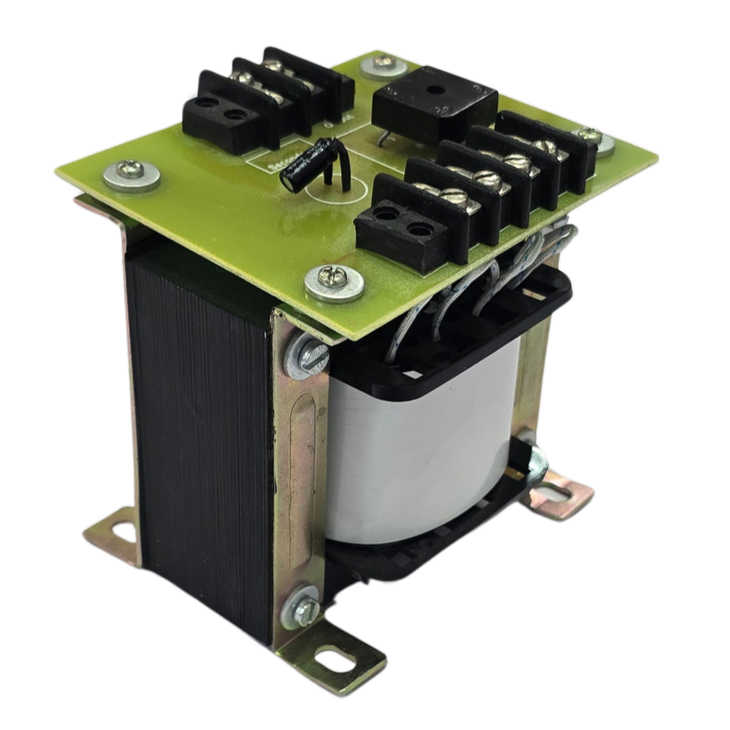

DC Transformer
In industrial electrical panels, these are standard step-down transformers connected to an AC mains supply but paired with an rectifier to produce a controlled 24V or 12V DC output. We offer DC Transformers ranging from 40VA to 1 KVA.
DC Transformer
1 models available
| Model | Rating | Primary | Secondary | Insulation | Action |
|---|---|---|---|---|---|
| SVADCTRANS200 | 200 VA | 0, 110, 230 | 0, 12/24 | F Class | Viewarrow_forward |
Need a Custom Transformer?
We build transformers with custom VA ratings, primary/secondary voltages, and tap configurations to match your exact requirements. No minimum order quantity.
