Industrial Sensors Catalog

Precision engineered for rugged industrial environments. Explore specifications, tolerances, and dimensional data for our proximity, photoelectric, and specialized sensors.

tune

Custom sensors available — We customize sensing distance, output type, voltage & housing to your application. No MOQ.

Enquire arrow_forward

radar

M8 Inductive Proximity Sensor

An M8 inductive proximity sensor is a compact, 8mm diameter threaded sensor used for non-contact detection of metallic objects in industrial automation. Operating via electromagnetic induction, it offers high precision for position sensing and counting, typically featuring a 1.5mm to 2mm sensing range, 10–30V DC power, and a durable metal housing.

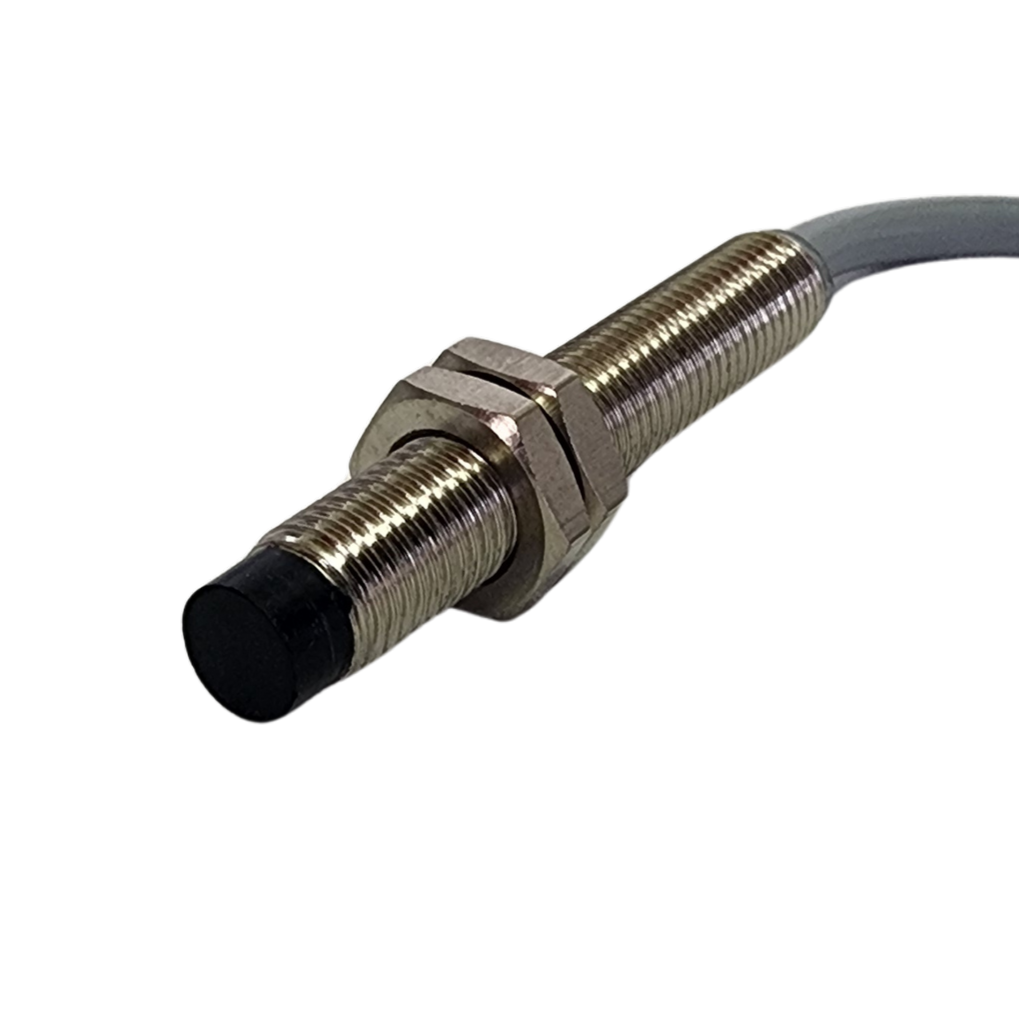

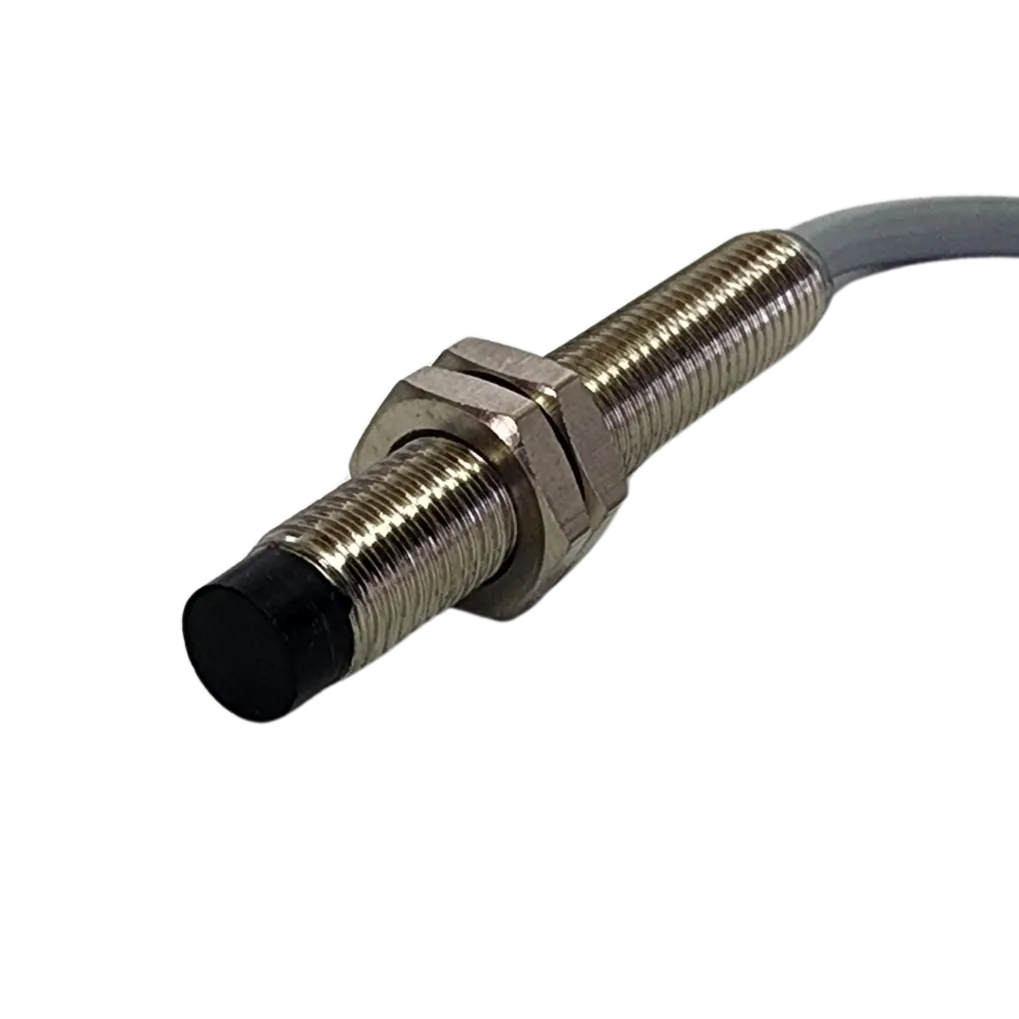

M8 DC NPN NON FLUSH

M8 DC NPN NON FLUSH

SVA 08 DC NPN NON FLUSH

Rated Operating Distance1.5 mm ± 10%

Output Logic/Switching Element FunctionNPN, NO / NC

Supply Voltage10-30 VDC

M8 DC PNP NON FLUSH

M8 DC PNP NON FLUSH

SVA 08 DC PNP NON FLUSH

Rated Operating Distance1.5 mm ± 10%

Output Logic/Switching Element FunctionPNP, NO / NC

Supply Voltage10-30 VDC

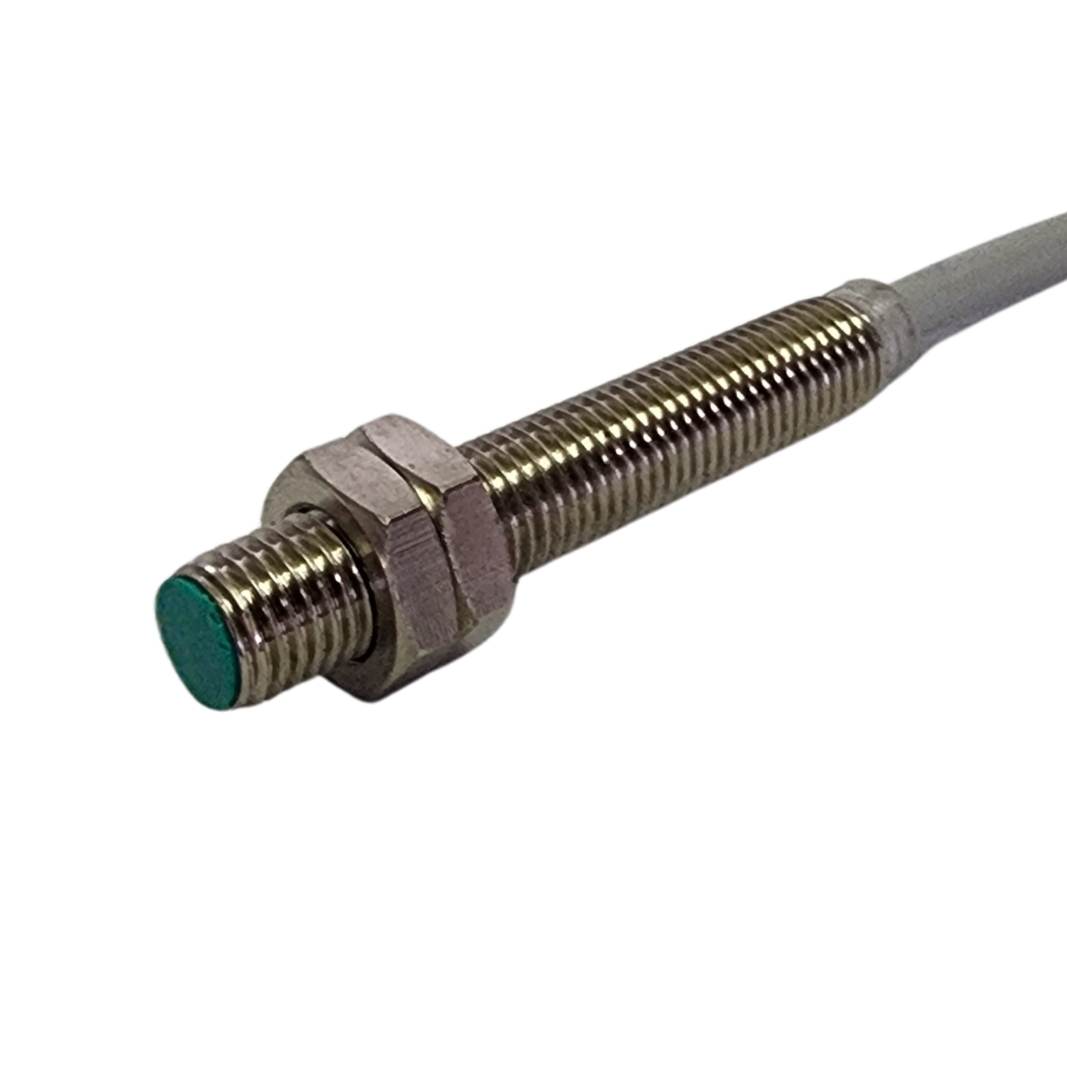

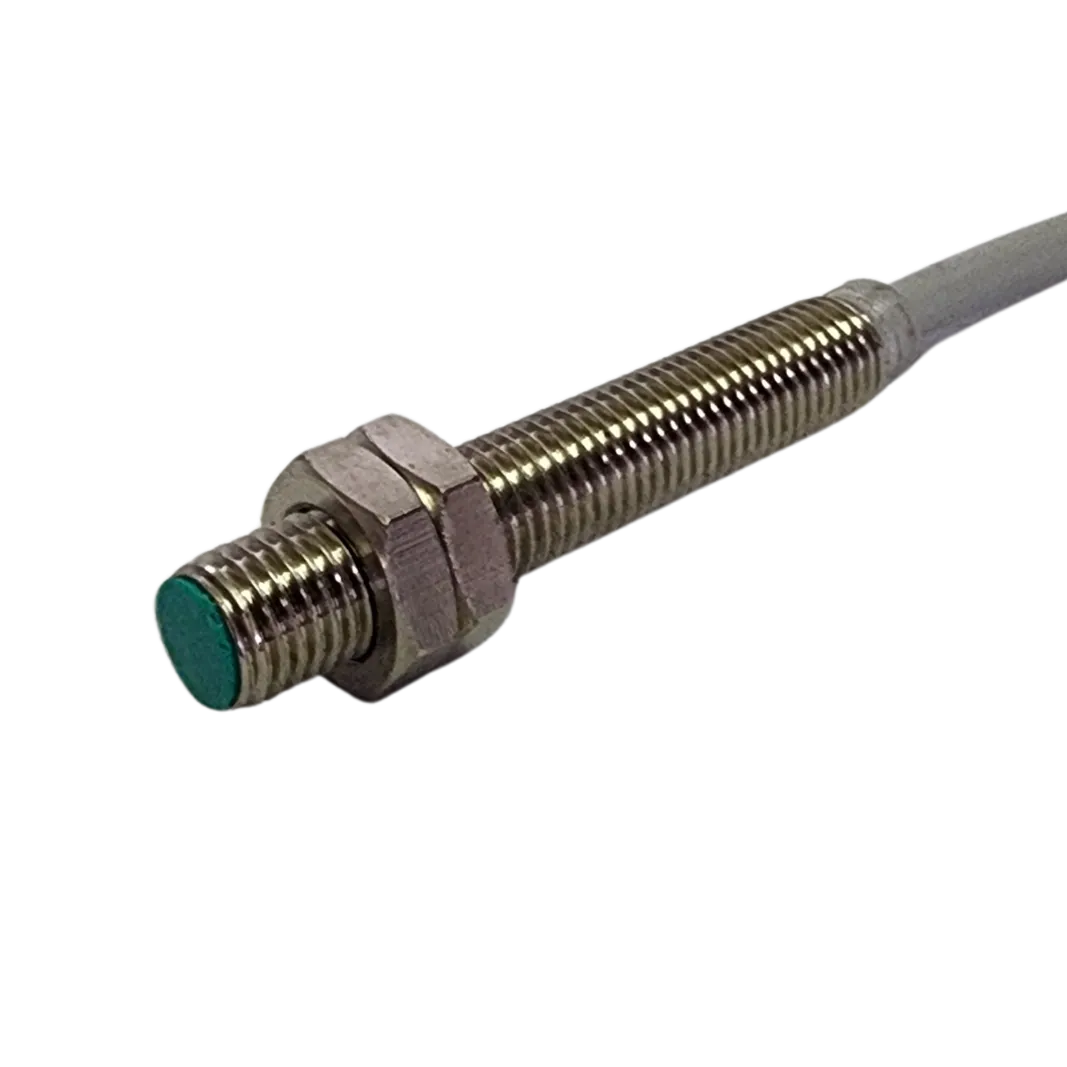

M8 DC NPN FLUSH

M8 DC NPN FLUSH

SVA 08 DC NPN FLUSH

Rated Operating Distance1 mm ± 10%

Output Logic/Switching Element FunctionNPN, NO / NC

Supply Voltage10-30 VDC

M8 DC PNP FLUSH

M8 DC PNP FLUSH

SVA 08 DC PNP FLUSH

Rated Operating Distance1 mm ± 10%

Output Logic/Switching Element FunctionPNP, NO / NC

Supply Voltage10-30 VDC

radar

M12 Inductive Proximity Sensor

An M12 inductive proximity sensor is a compact, 12mm diameter, non-contact device designed for industrial automation to detect metallic objects. Sensing Range: Typically 2mm (shielded/flush) to 4mm (unshielded/non-flush).

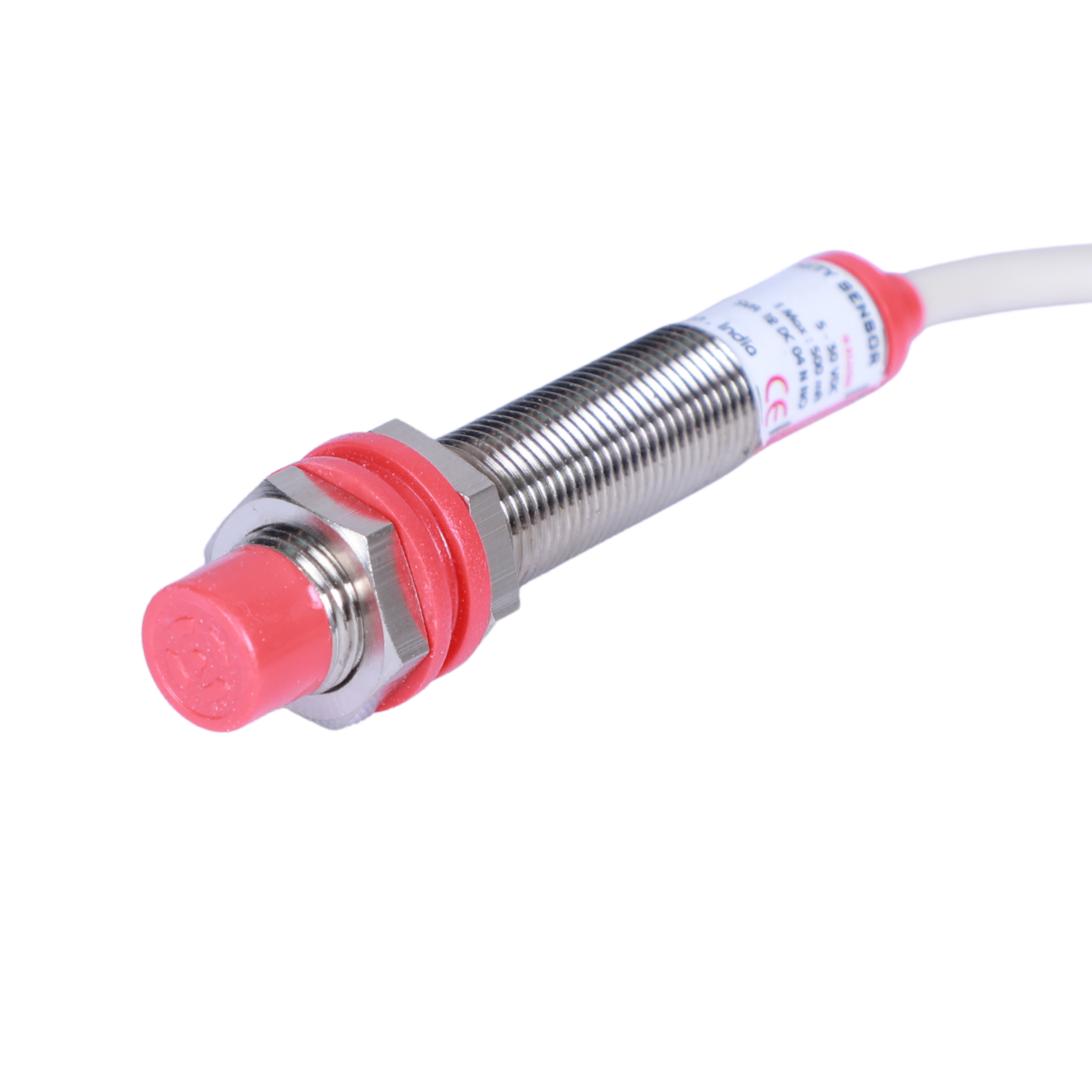

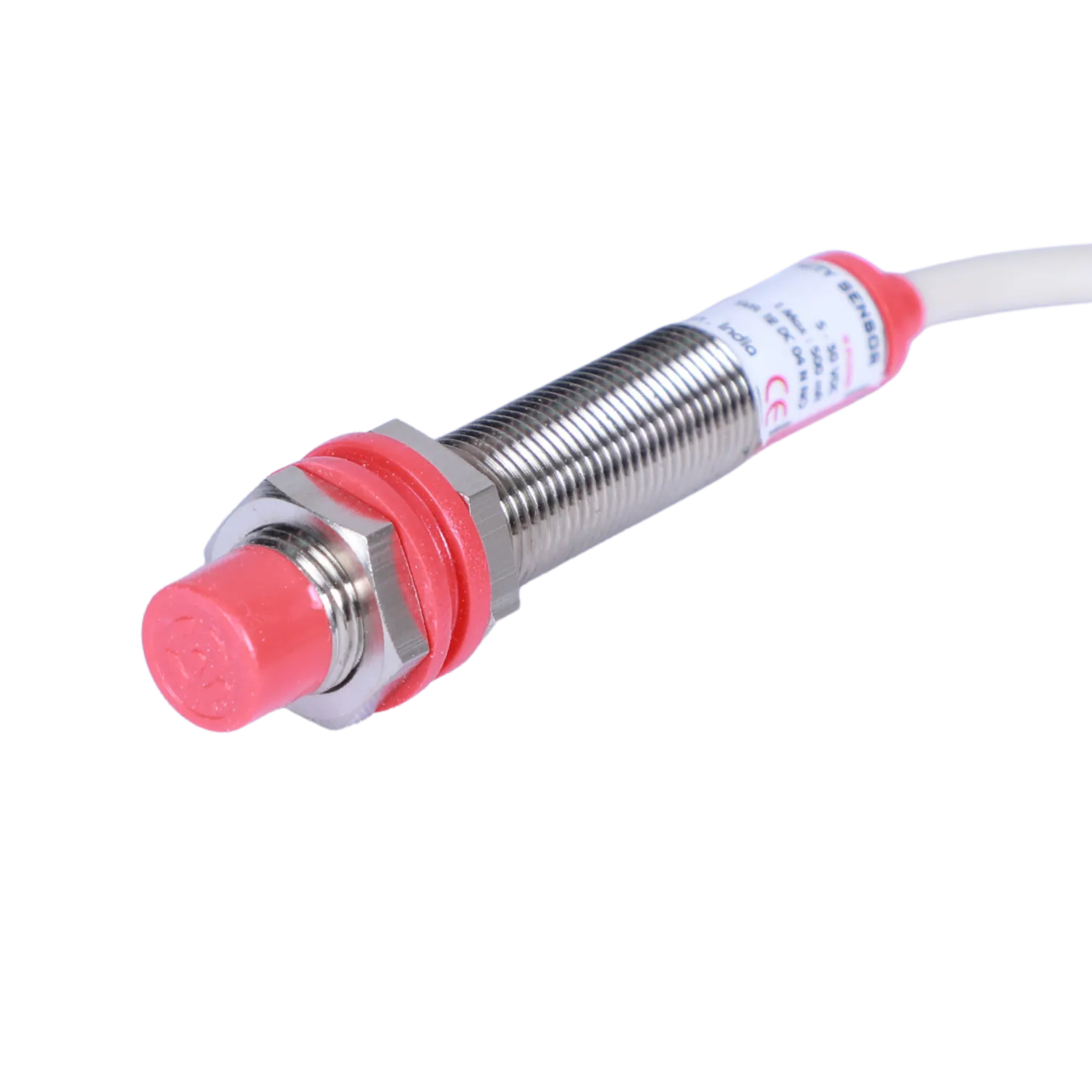

M12 DC NPN NON FLUSH

M12 DC NPN NON FLUSH

SVA 12 DC NPN NON FLUSH

Rated Operating Distance4 mm ± 10%

Output Logic/Switching Element FunctionNPN, NO / NC

Supply Voltage10-30 VDC

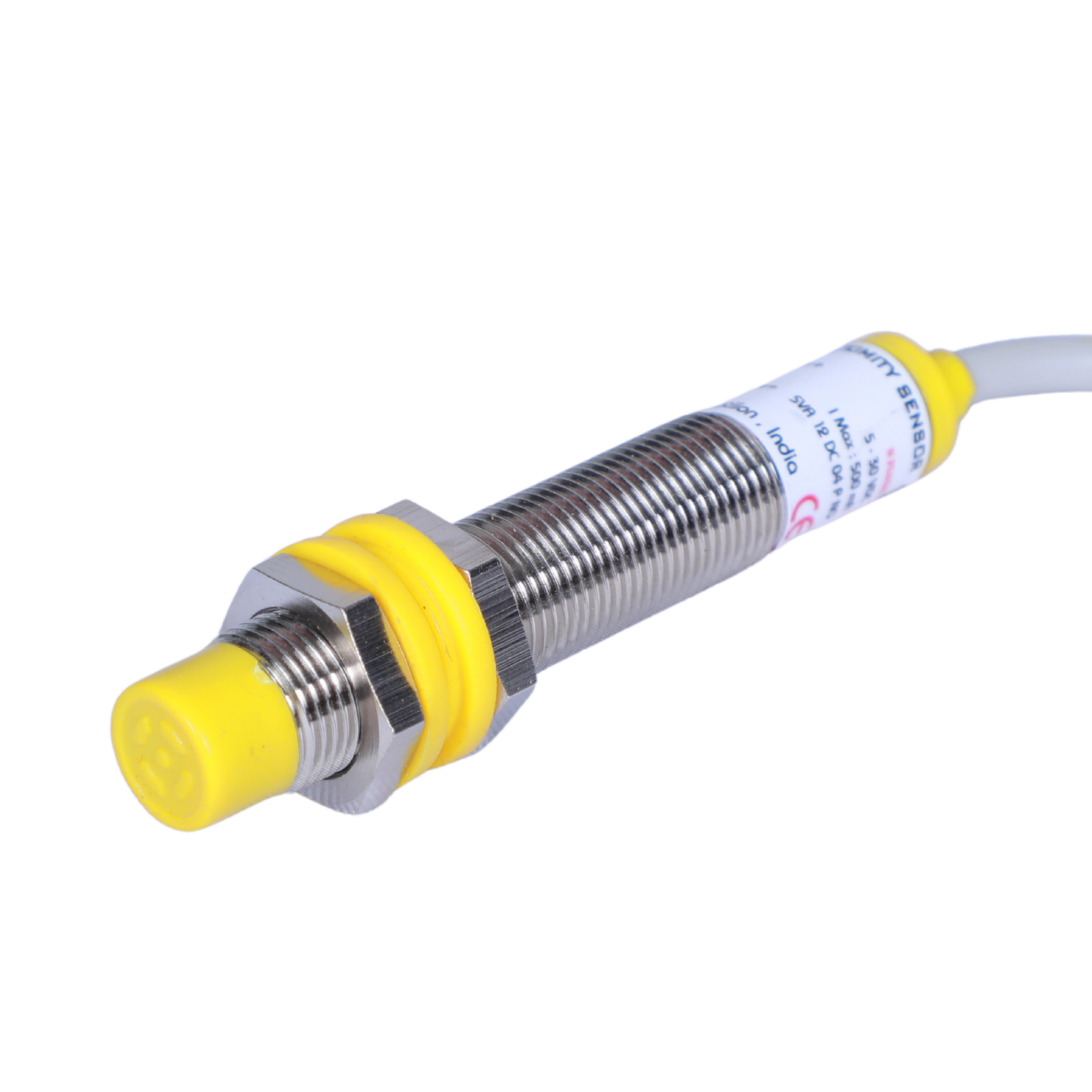

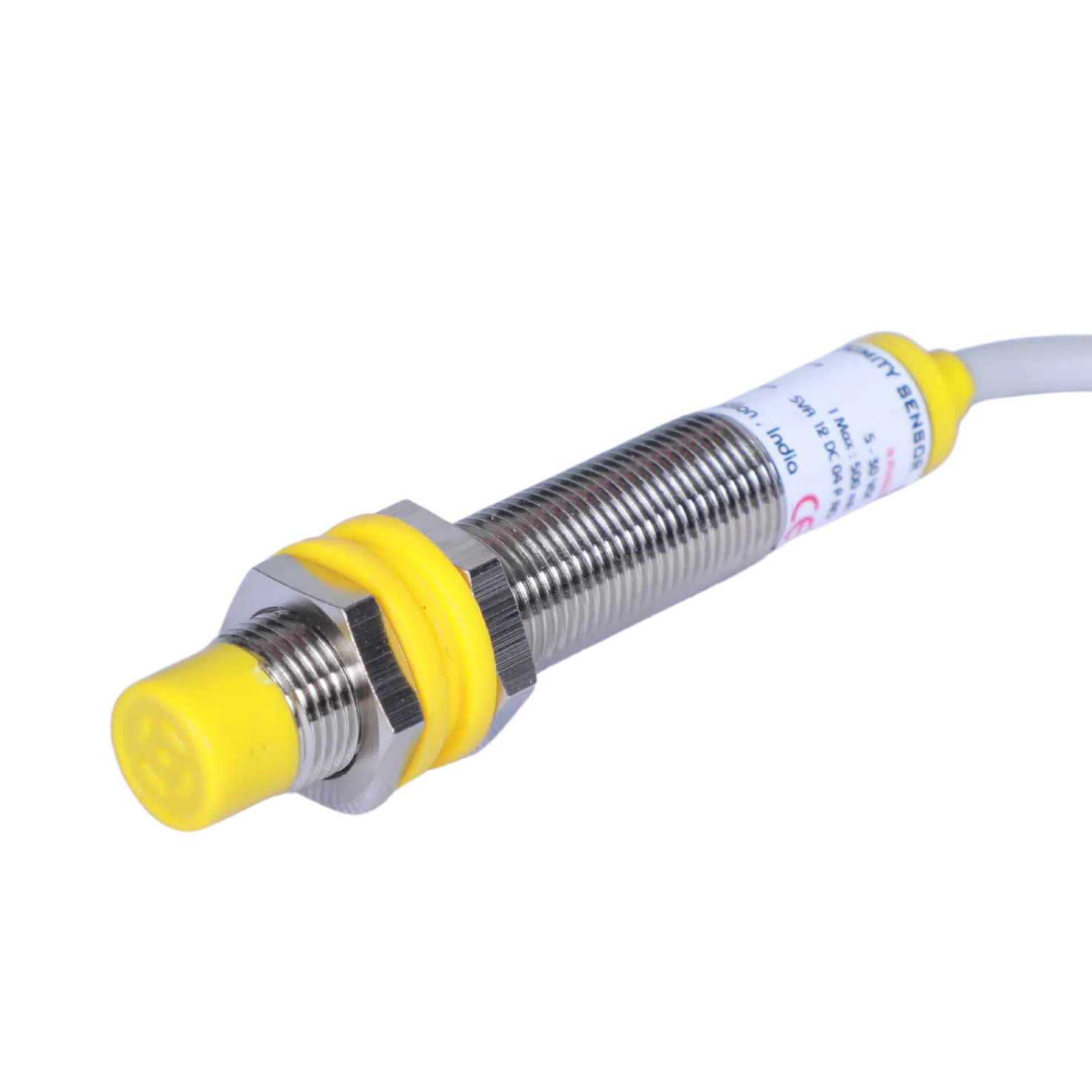

M12 DC PNP NON FLUSH

M12 DC PNP NON FLUSH

SVA 12 DC PNP NON FLUSH

Rated Operating Distance4 mm ± 10%

Output Logic/Switching Element FunctionPNP, NO / NC

Supply Voltage10-30 VDC

M12 AC NC NON FLUSH

M12 AC NC NON FLUSH

SVA 12 AC NC NON FLUSH

Rated Operating Distance4 mm ± 10%

Output Logic/Switching Element FunctionNC

Supply Voltage90-230 VAC

M12 AC NO NON FLUSH

M12 AC NO NON FLUSH

SVA 12 AC NO NON FLUSH

Rated Operating Distance4 mm ± 10%

Output Logic/Switching Element FunctionNO

Supply Voltage90-230 VAC

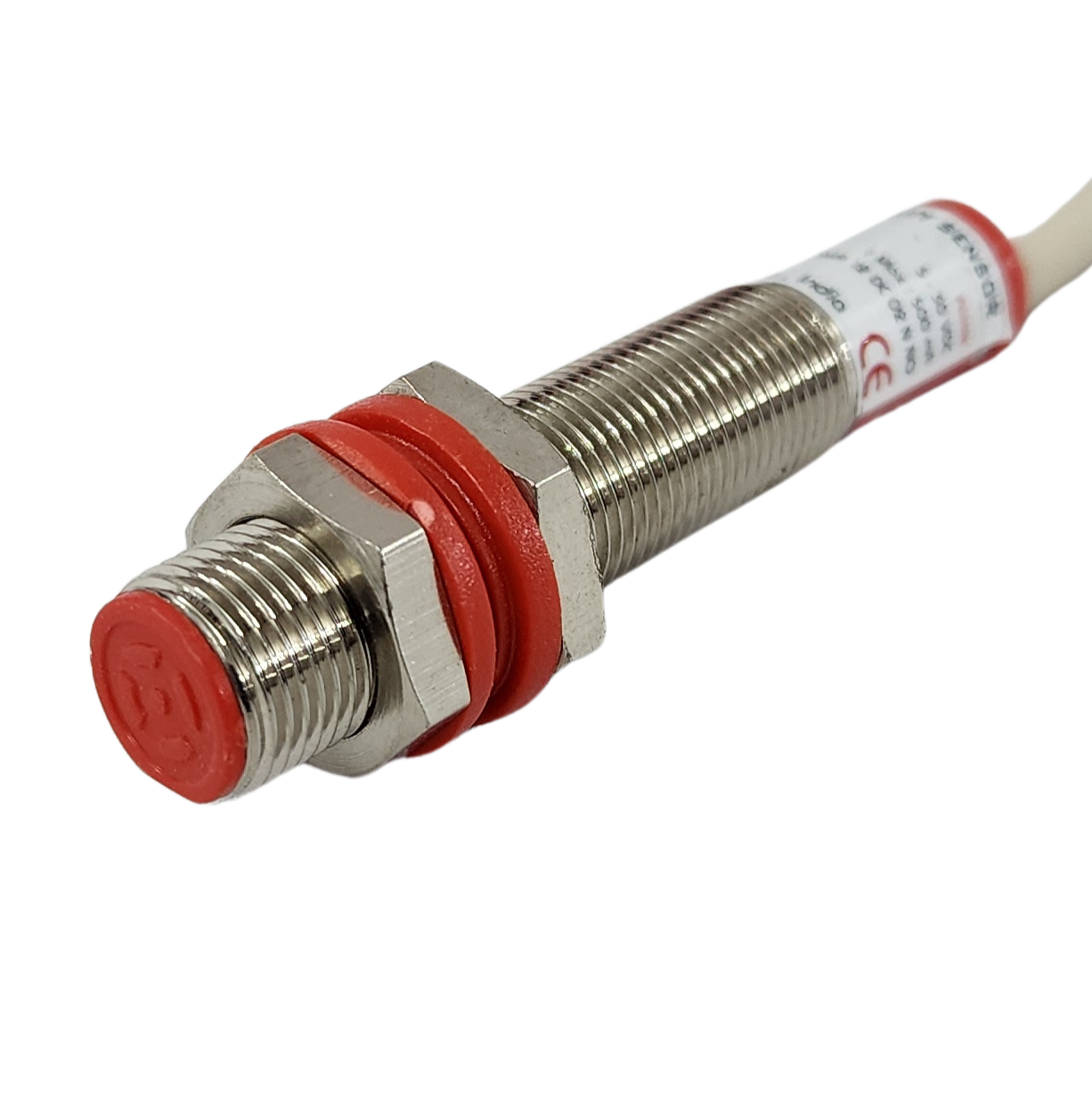

M12 DC NPN FLUSH

M12 DC NPN FLUSH

SVA 12 DC NPN FLUSH

Rated Operating Distance2 mm ± 10%

Output Logic/Switching Element FunctionNPN, NO / NC

Supply Voltage10-30 VDC

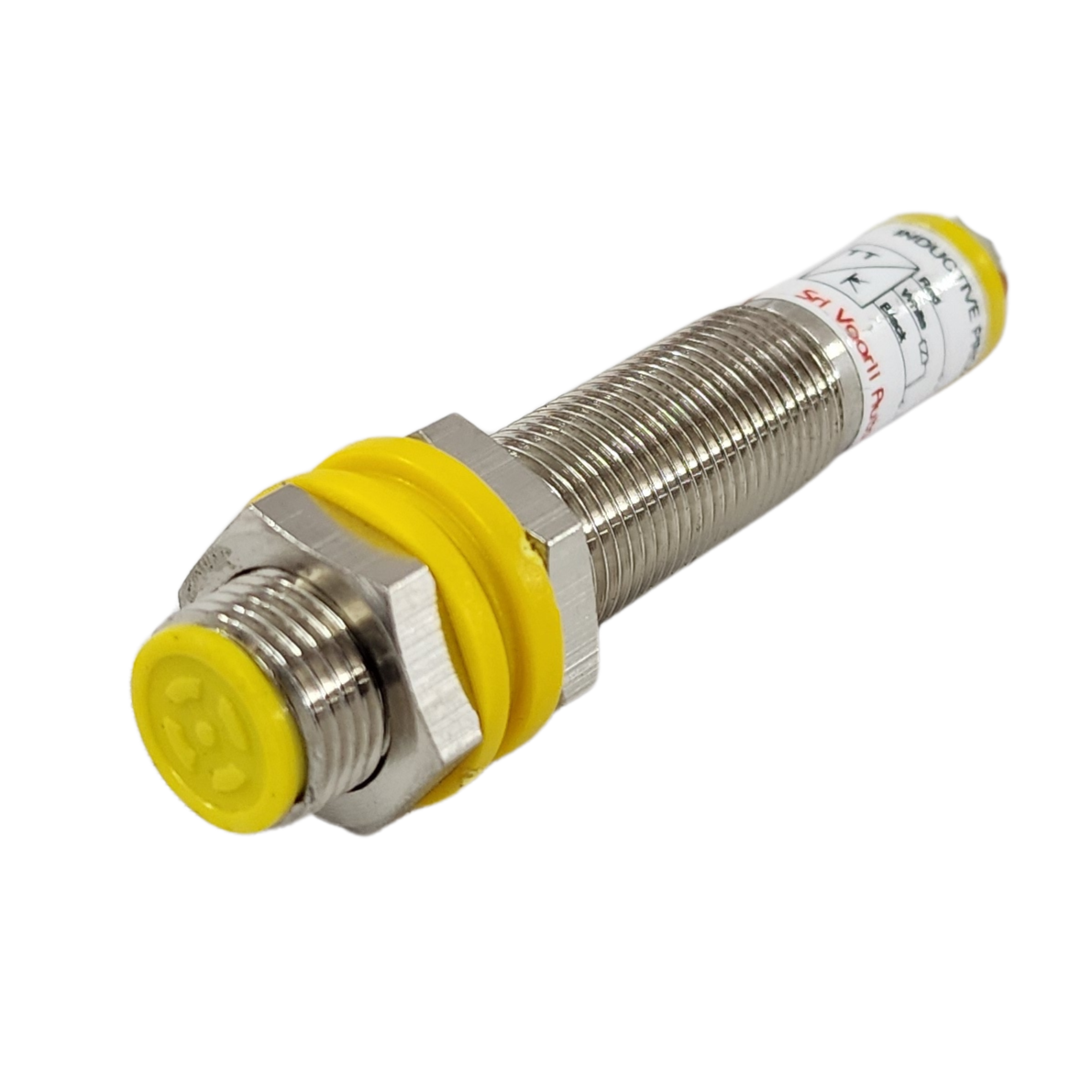

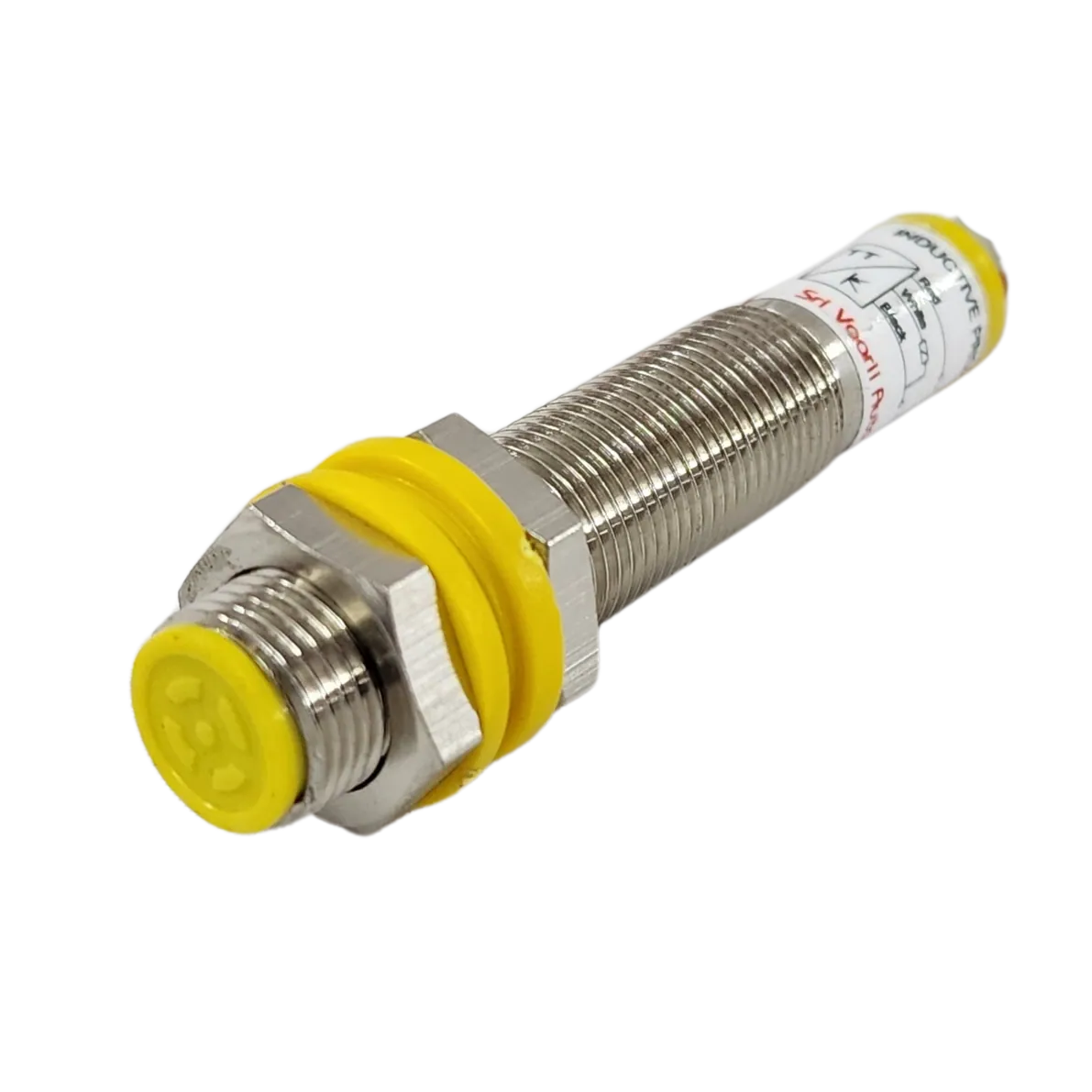

M12 DC PNP FLUSH

M12 DC PNP FLUSH

SVA 12 DC PNP FLUSH

Rated Operating Distance2 mm ± 10%

Output Logic/Switching Element FunctionPNP, NO / NC

Supply Voltage10-30 VDC

M12 AC NC FLUSH

M12 AC NC FLUSH

SVA 12 AC NC FLUSH

Rated Operating Distance2 mm ± 10%

Output Logic/Switching Element FunctionNC

Supply Voltage90-230 VAC

M12 AC NO FLUSH

M12 AC NO FLUSH

SVA 12 AC NO FLUSH

Rated Operating Distance2 mm ± 10%

Output Logic/Switching Element FunctionNC

Supply Voltage90-230 VAC

radar

M18 Inductive Proximity Sensor

The M18 inductive proximity sensor is a widely used industrial, 18mm diameter threaded sensor designed for non-contact detection of metallic objects. Sensing Distance: Typically 5mm to 10mm (flush) or up to 16mm-20mm (non-flush/unshielded).

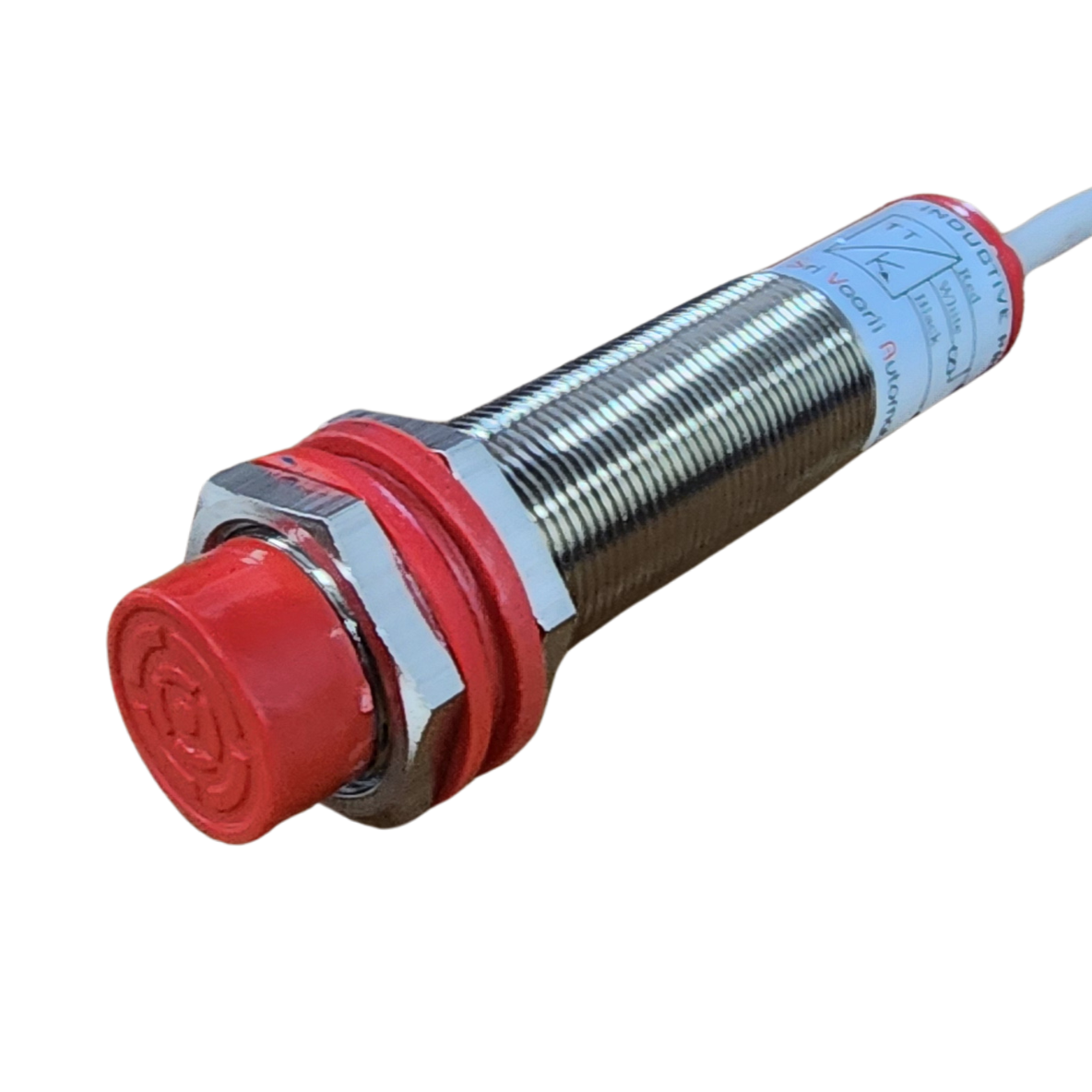

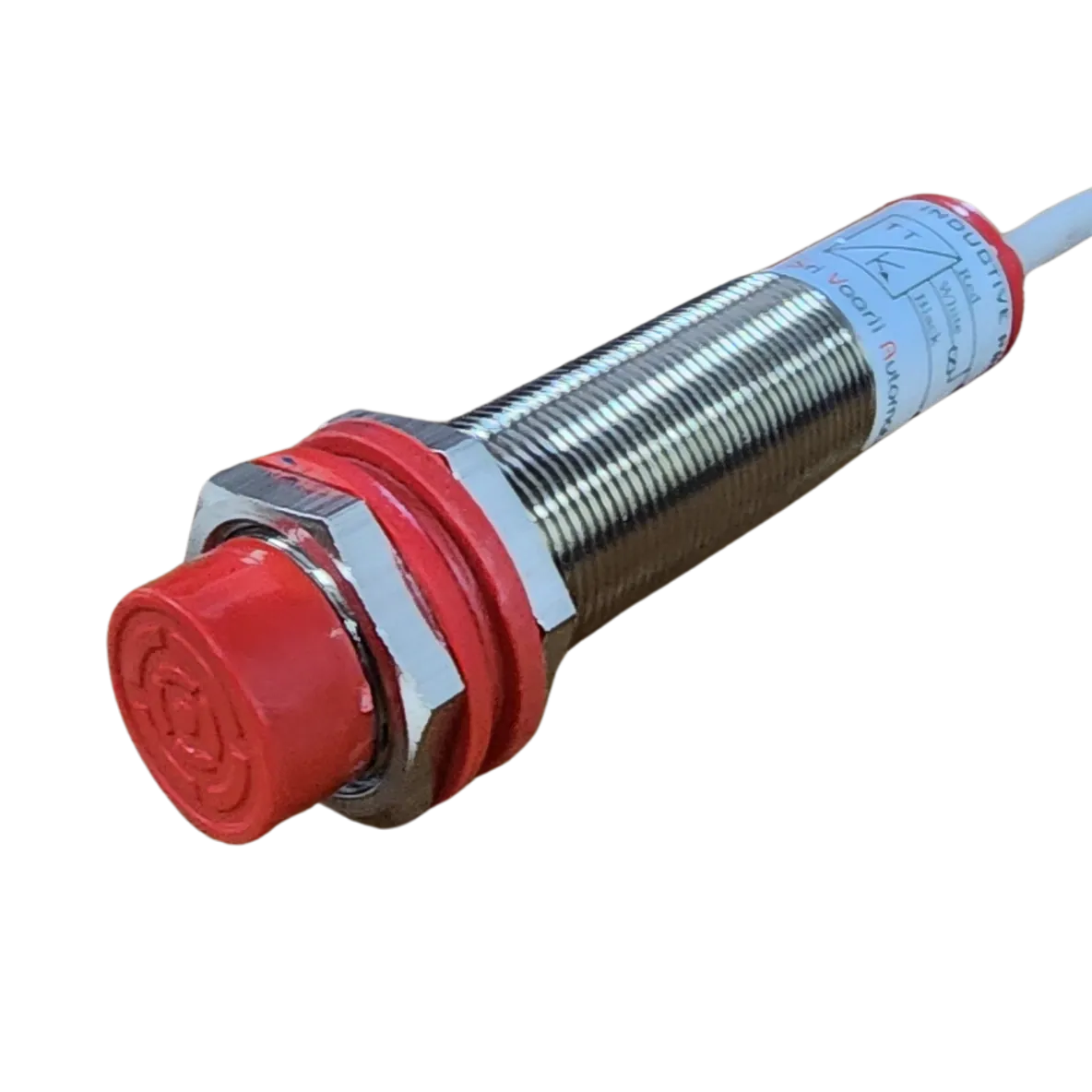

M18 DC NPN NON FLUSH

M18 DC NPN NON FLUSH

SVA 18 DC NPN NON FLUSH

Rated Operating Distance8 mm ± 10%

Output Logic/Switching Element FunctionNPN, NO / NC

Supply Voltage10-30 VDC

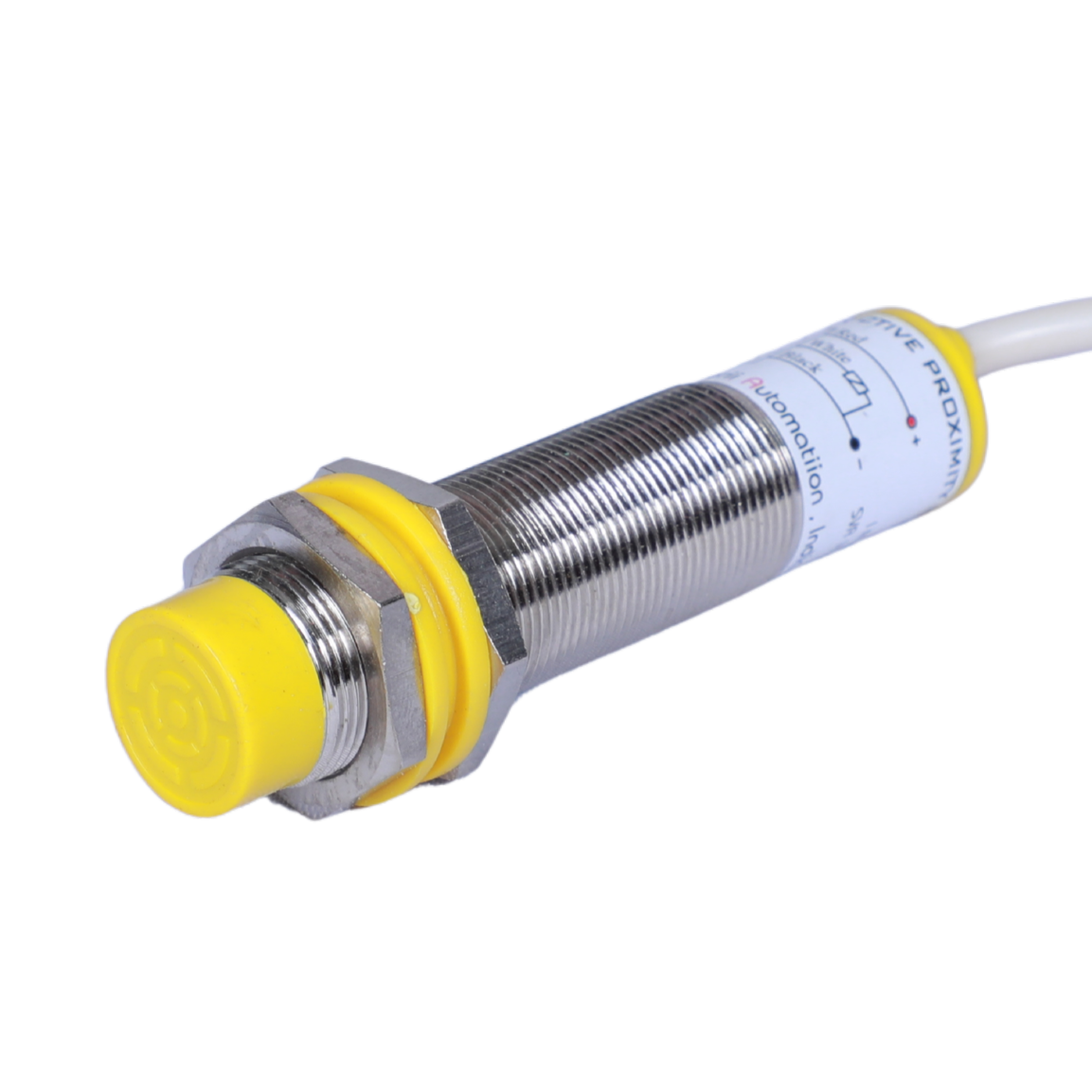

M18 DC PNP NON FLUSH

M18 DC PNP NON FLUSH

SVA 18 DC PNP NON FLUSH

Rated Operating Distance8 mm ± 10%

Output Logic/Switching Element FunctionPNP, NO / NC

Supply Voltage10-30 VDC

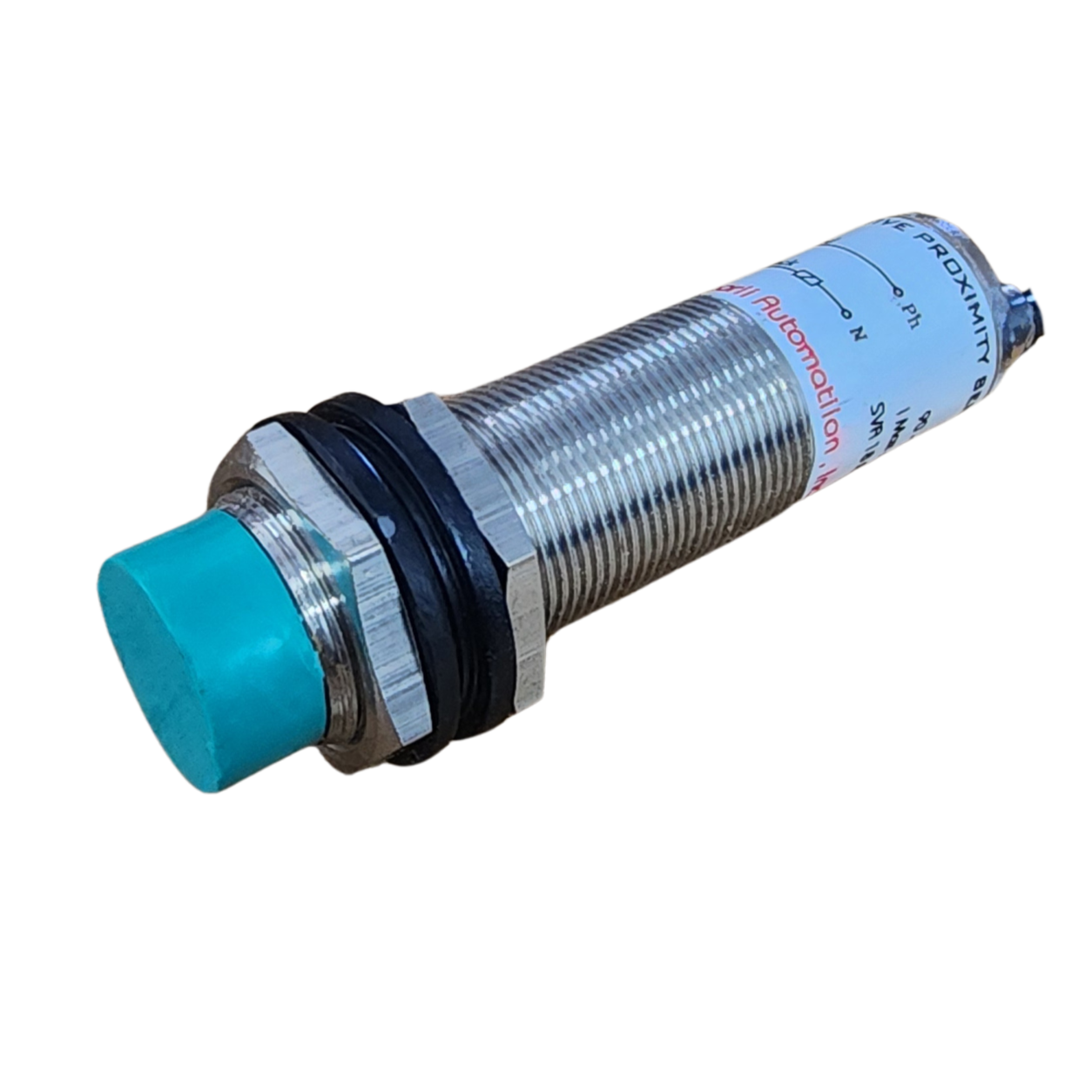

M18 AC NO NON FLUSH

M18 AC NO NON FLUSH

SVA 18 AC NO NON FLUSH

Rated Operating Distance8 mm ± 10%

Output Logic/Switching Element FunctionNO

Supply Voltage90-230 VDC

M18 AC NC NON FLUSH

M18 AC NC NON FLUSH

SVA 18 AC NC NON FLUSH

Rated Operating Distance8 mm ± 10%

Output Logic/Switching Element FunctionNC

Supply Voltage90-230 VDC

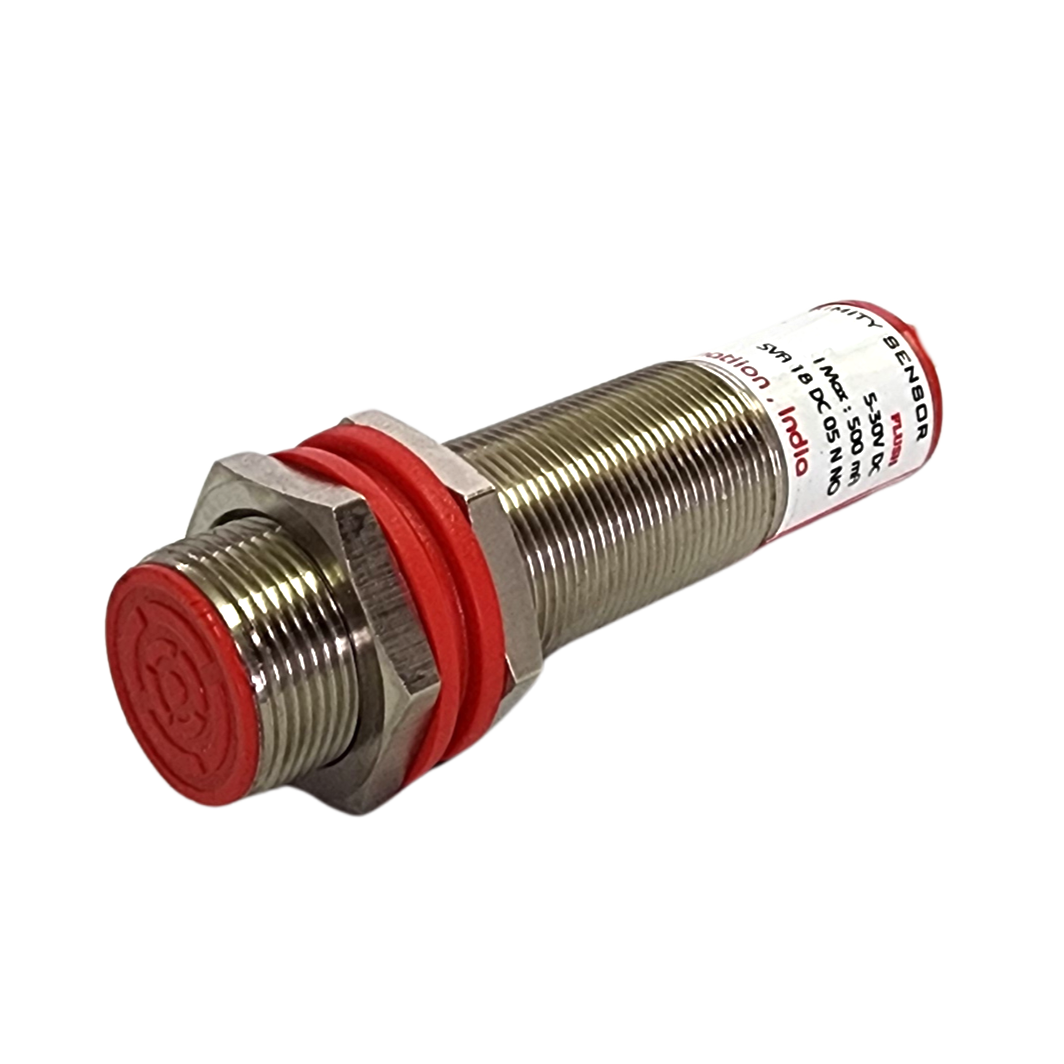

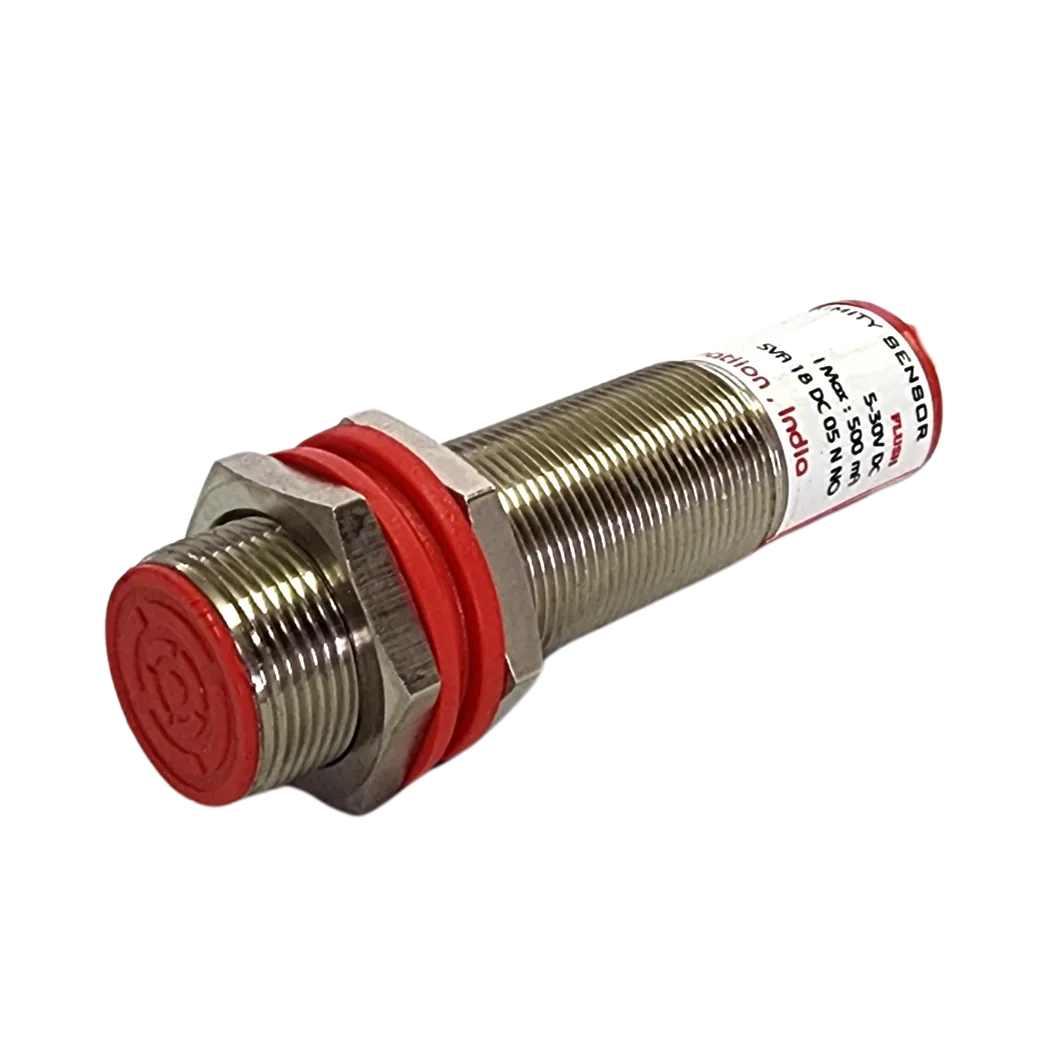

M18 DC NPN FLUSH

M18 DC NPN FLUSH

SVA 18 DC NPN FLUSH

Rated Operating Distance5 mm ± 10%

Output Logic/Switching Element FunctionNPN, NO / NC

Supply Voltage10-30 VDC

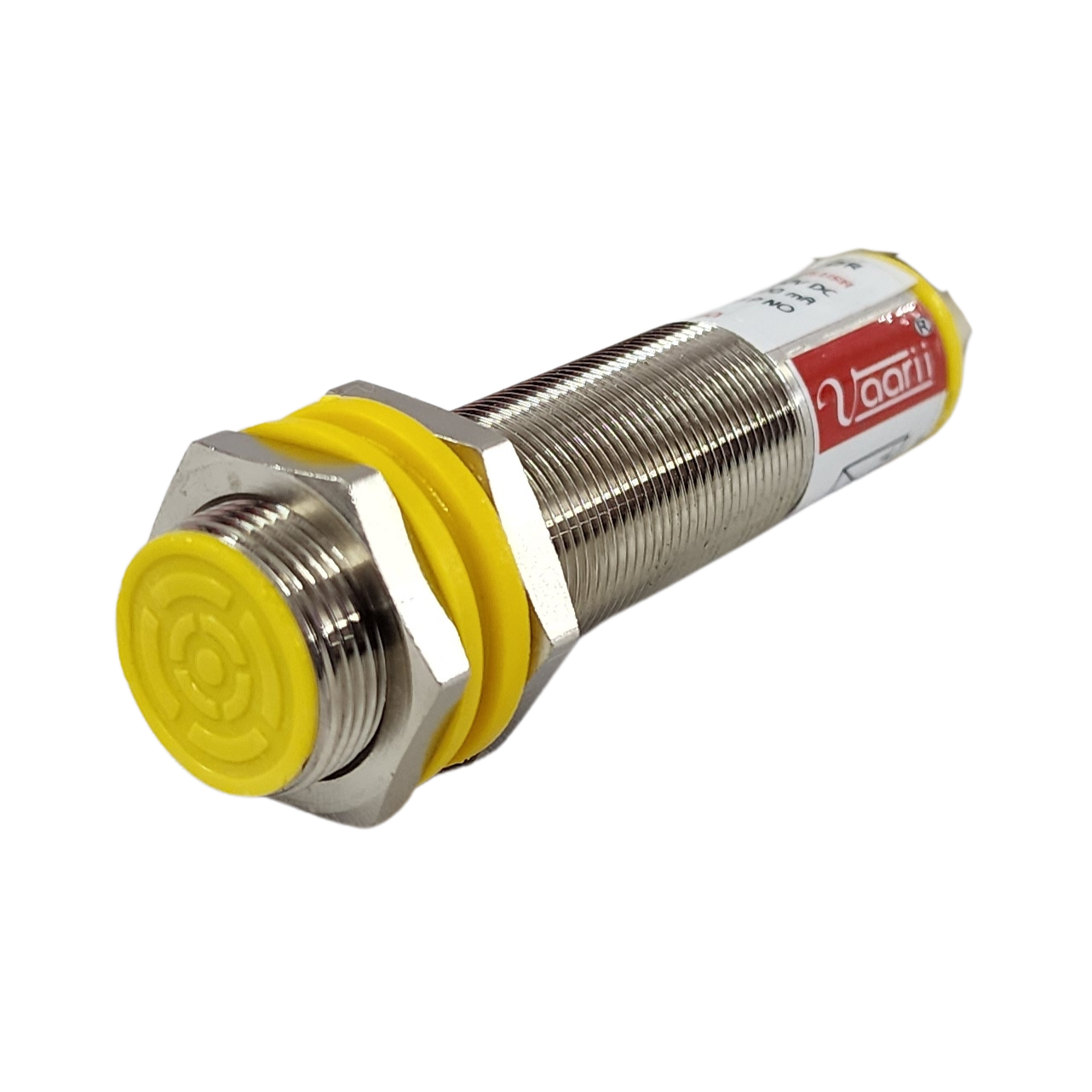

M18 DC PNP FLUSH

M18 DC PNP FLUSH

SVA 18 DC PNP FLUSH

Rated Operating Distance5 mm ± 10%

Output Logic/Switching Element FunctionPNP, NO / NC

Supply Voltage10-30 VDC

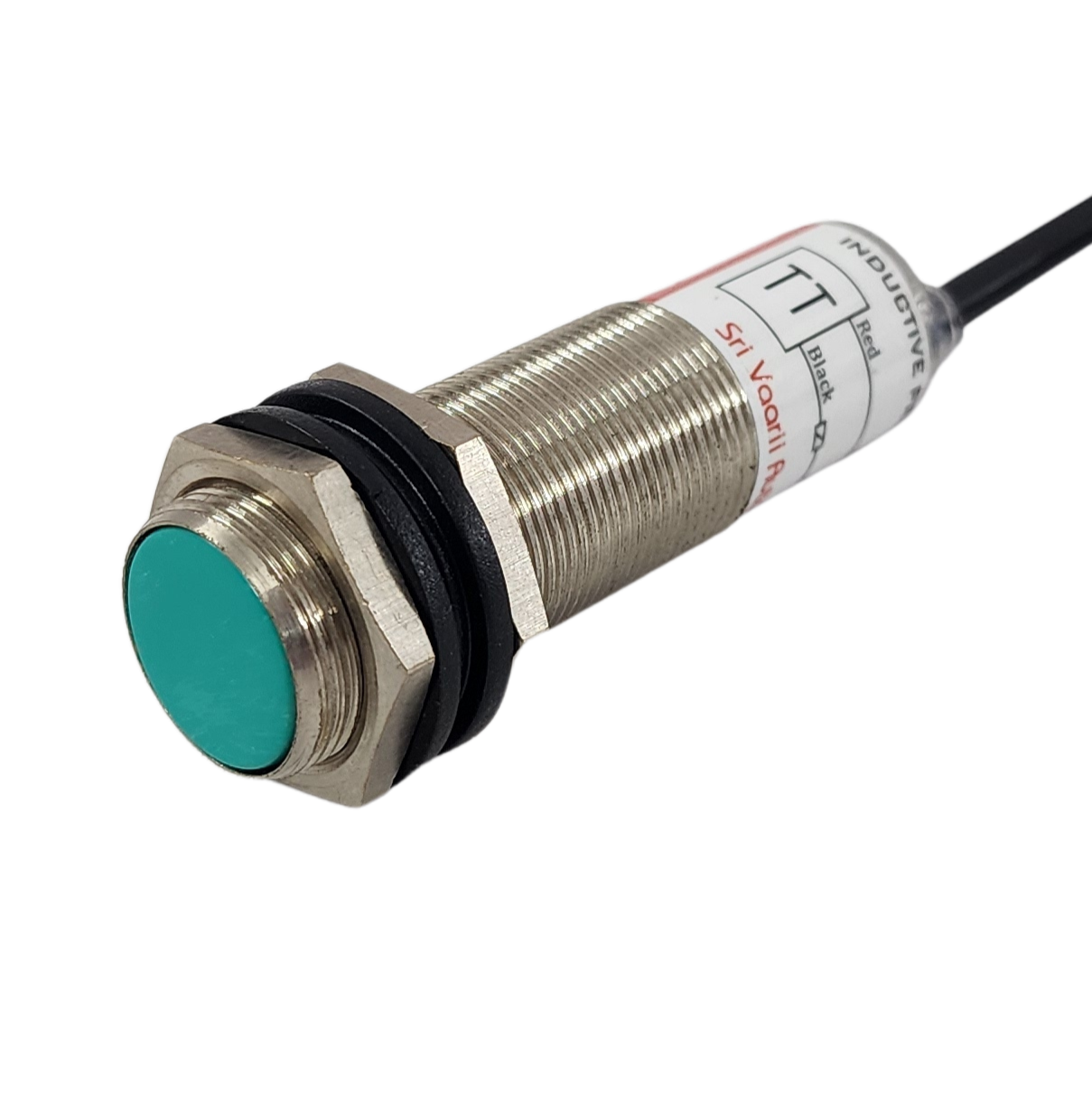

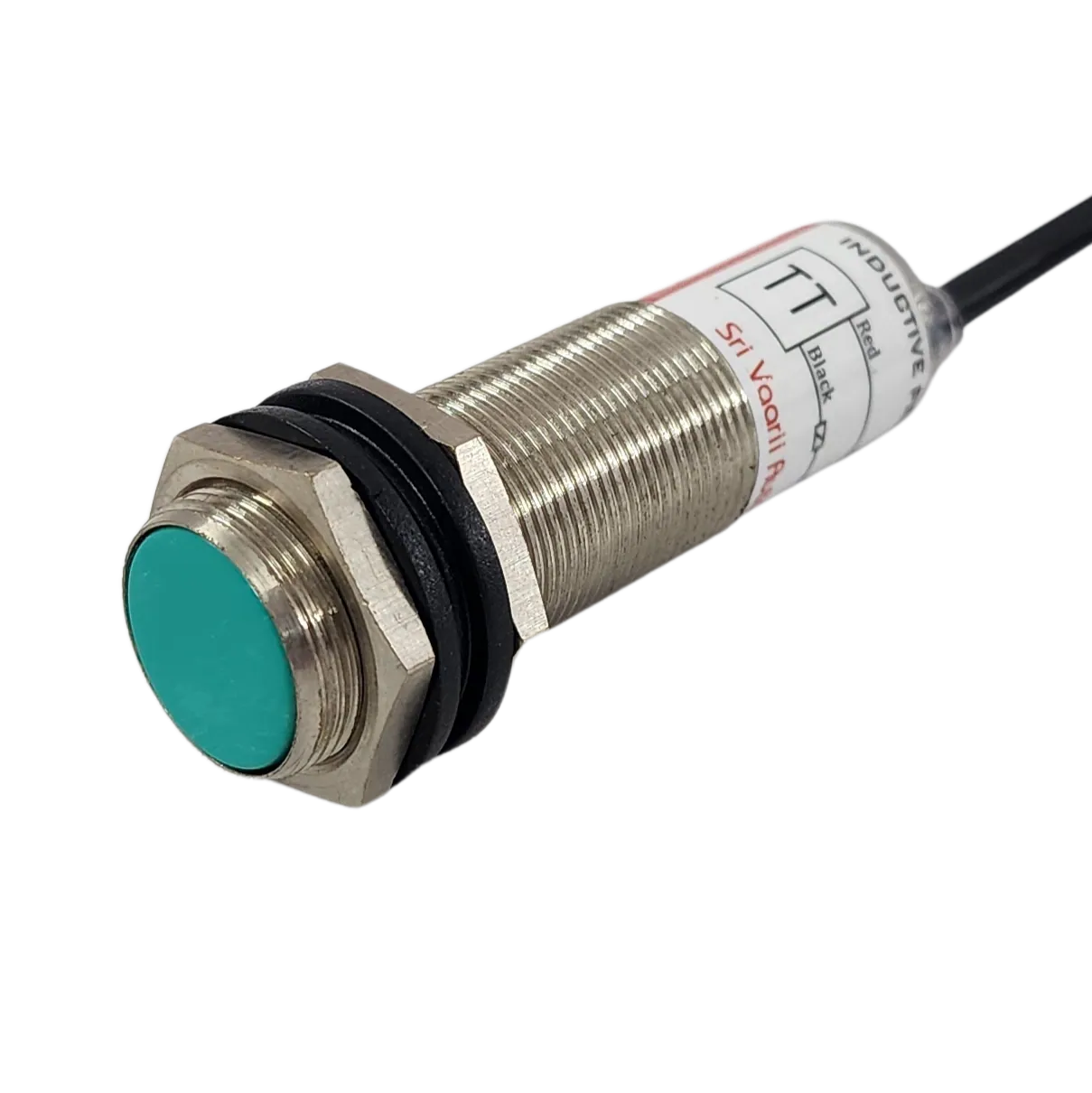

M18 AC NO FLUSH

M18 AC NO FLUSH

SVA 18 AC NO FLUSH

Rated Operating Distance5 mm ± 10%

Output Logic/Switching Element FunctionNO

Supply Voltage90-230 VAC

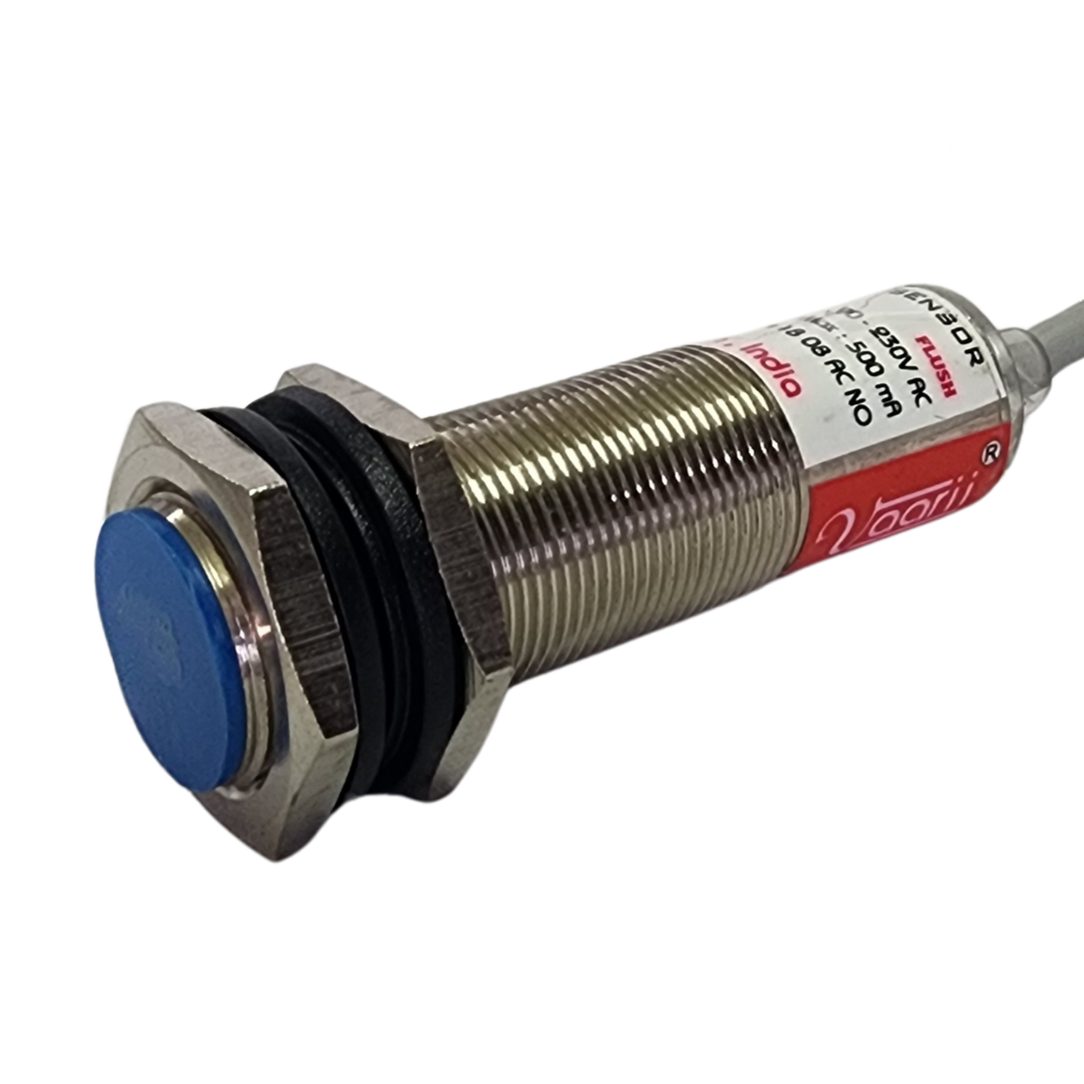

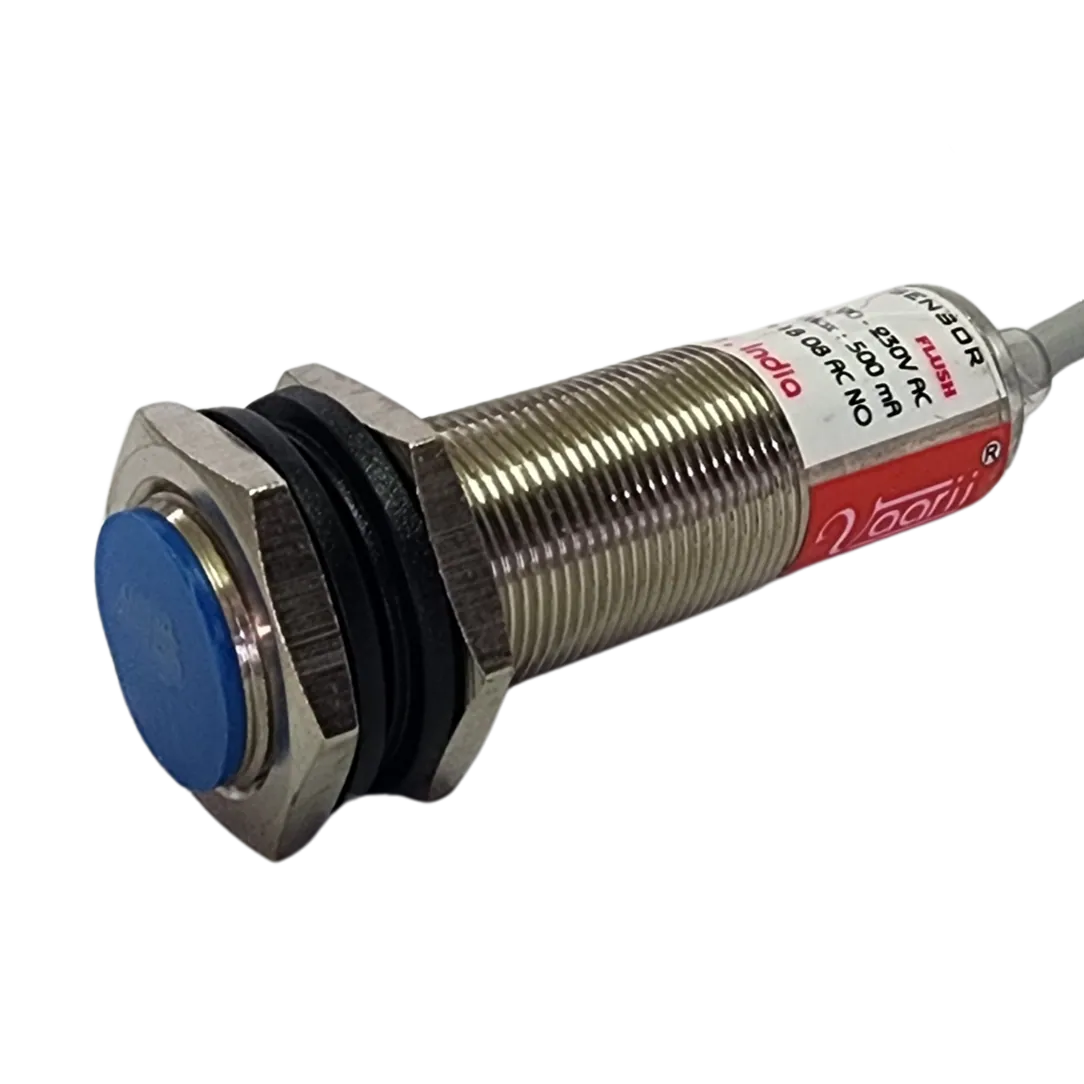

M18 AC NC FLUSH

M18 AC NC FLUSH

SVA 18 AC NC FLUSH

Rated Operating Distance5 mm ± 10%

Output Logic/Switching Element FunctionNC

Supply Voltage90-230 VAC

radar

M30 Inductive Proximity Sensor

The M30 inductive proximity sensor is a 30mm diameter cylindrical, non-contact sensor used for detecting metallic objects within a 10-15mm range (up to 40mm in some models).

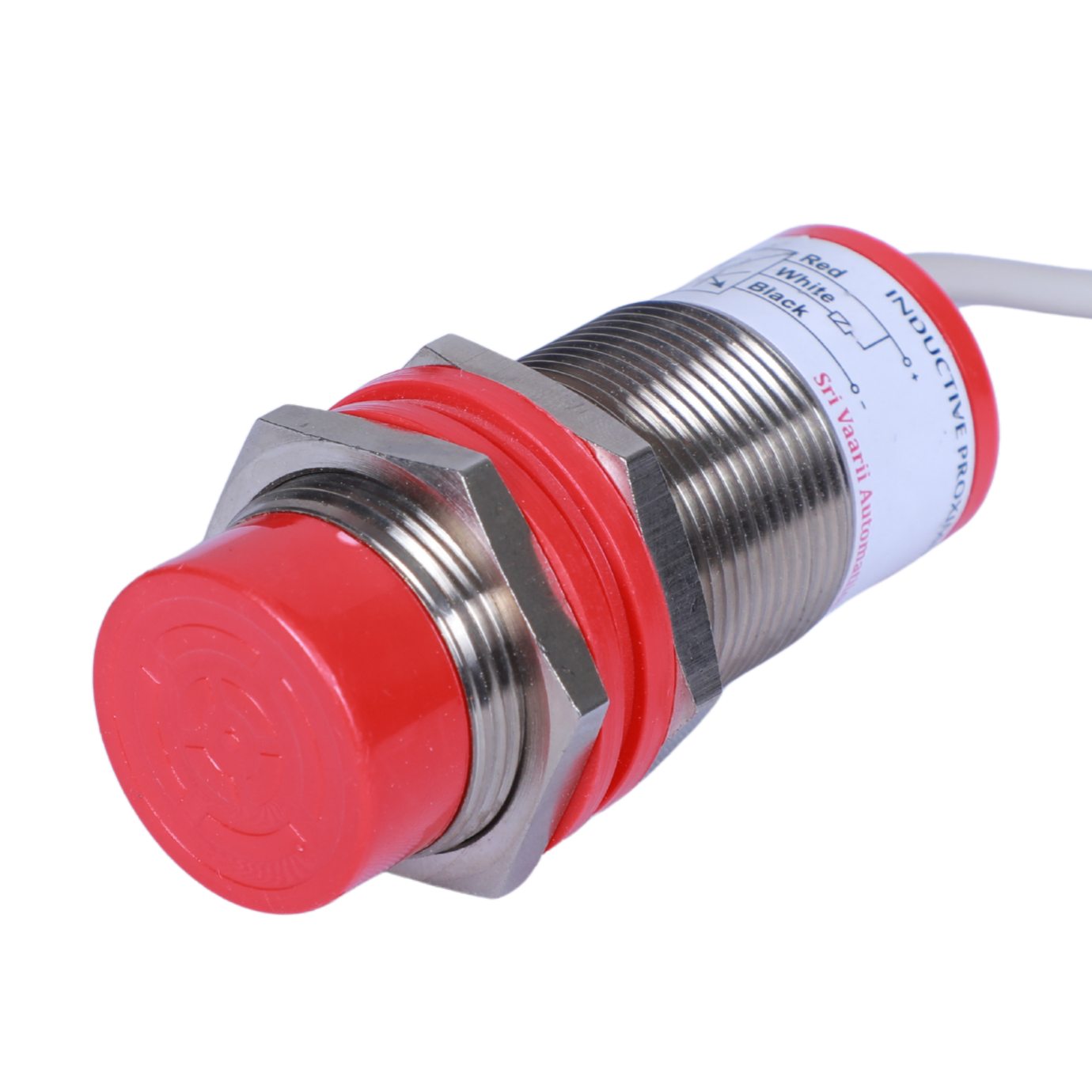

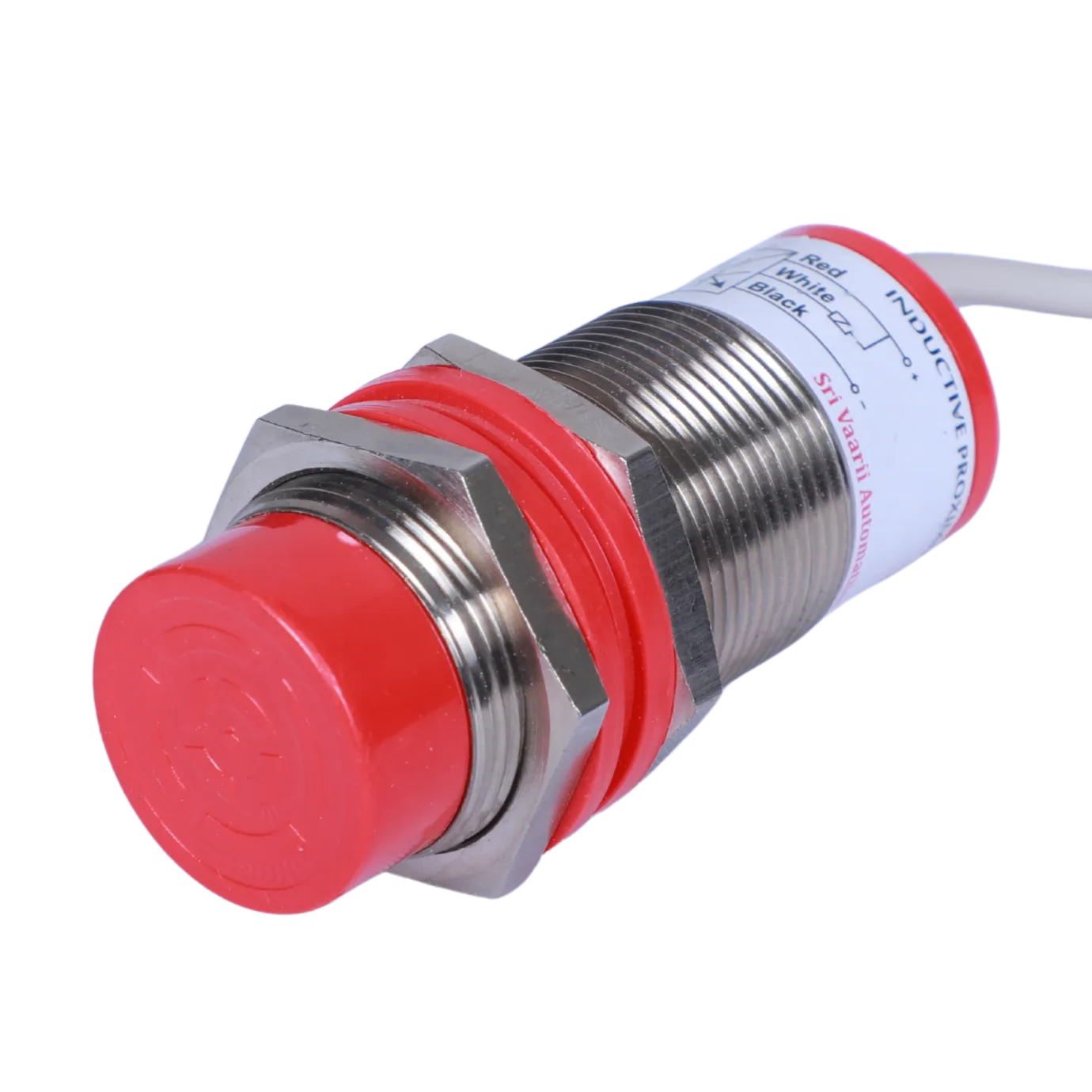

M30 DC NPN NON FLUSH

M30 DC NPN NON FLUSH

SVA 30 DC NPN NON FLUSH

Rated Operating Distance15 mm ± 10%

Output Logic/Switching Element FunctionNPN, NO / NC

Supply Voltage10-30 VDC

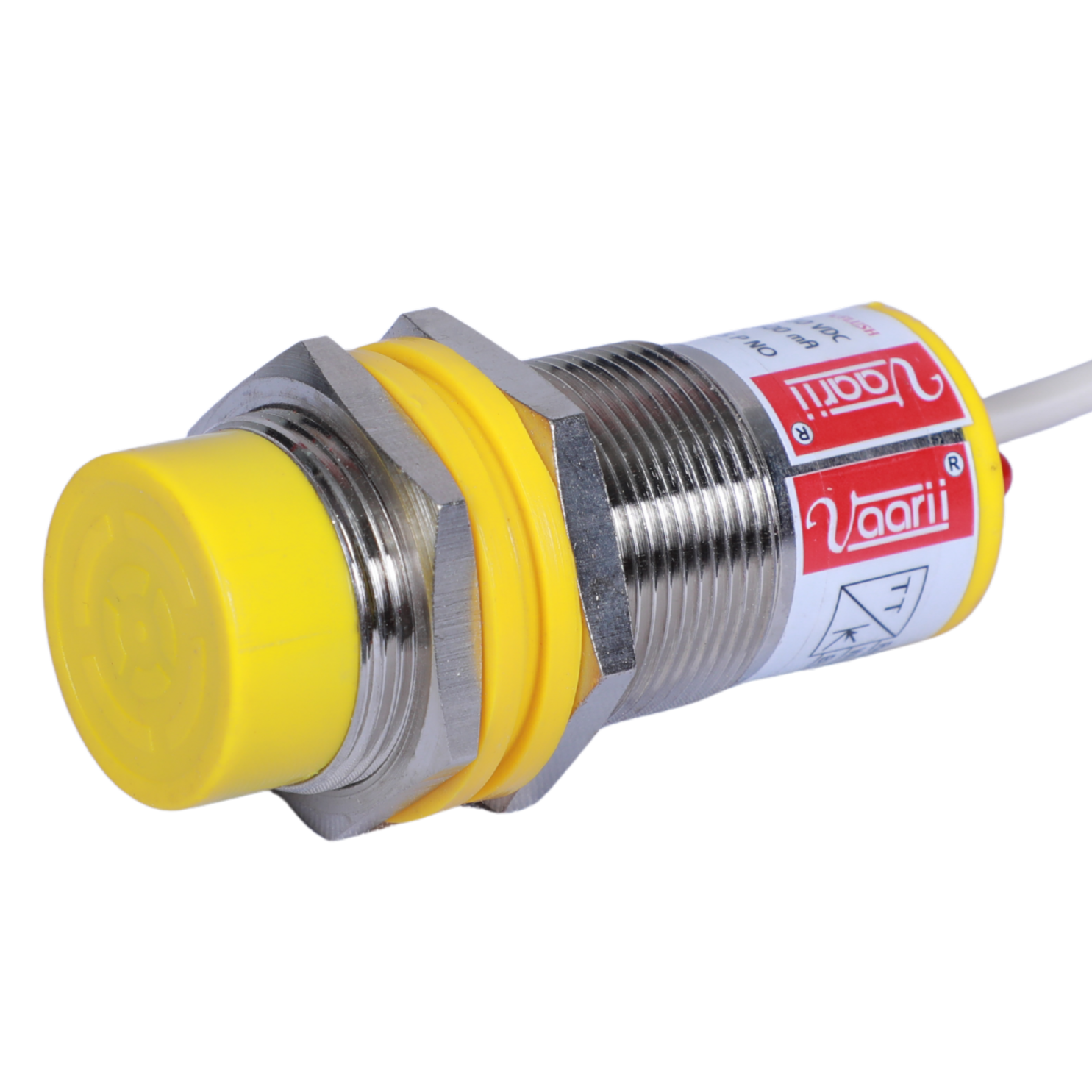

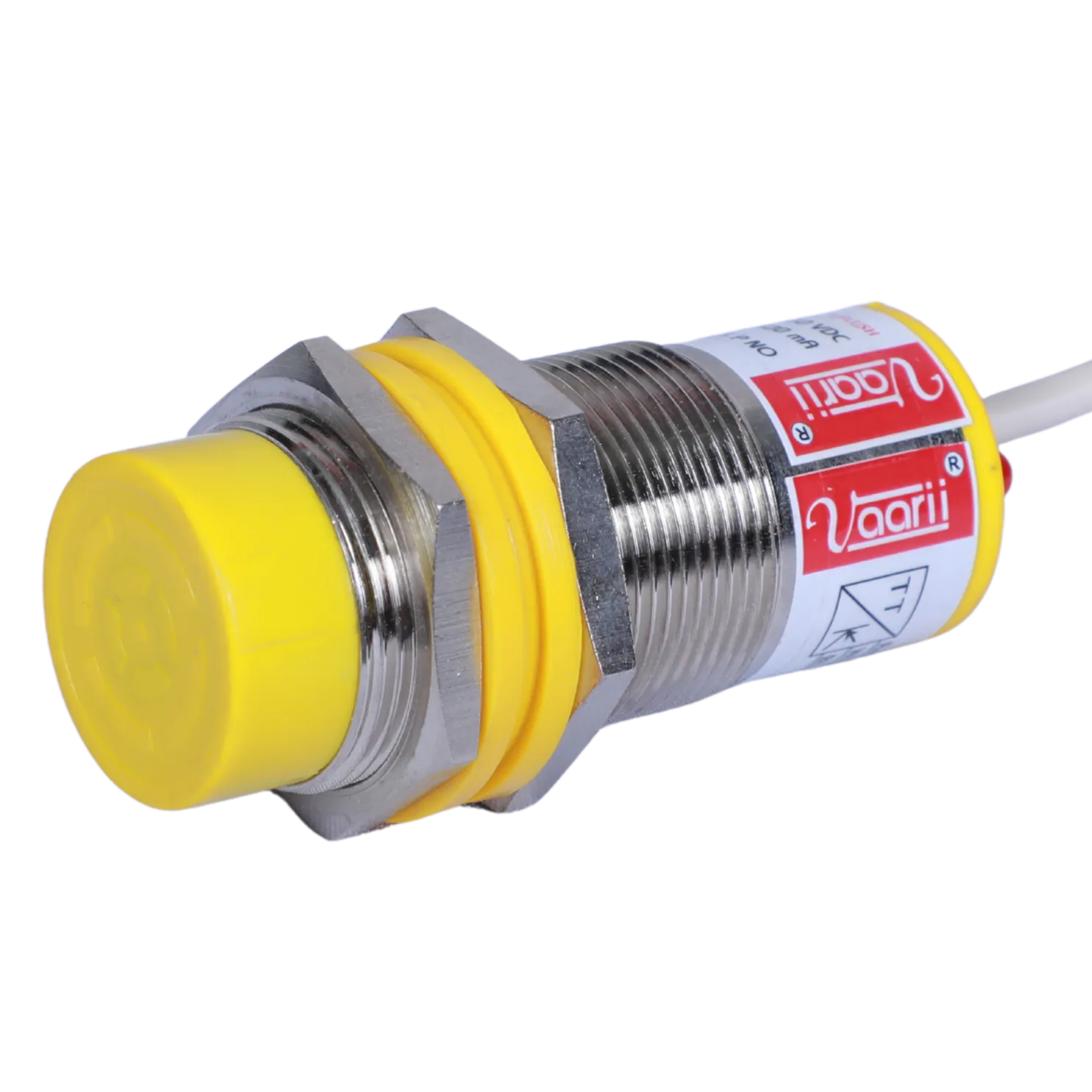

M30 DC PNP NON FLUSH

M30 DC PNP NON FLUSH

SVA 30 DC PNP NON FLUSH

Rated Operating Distance15 mm ± 10%

Output Logic/Switching Element FunctionPNP, NO / NC

Supply Voltage10-30 VDC

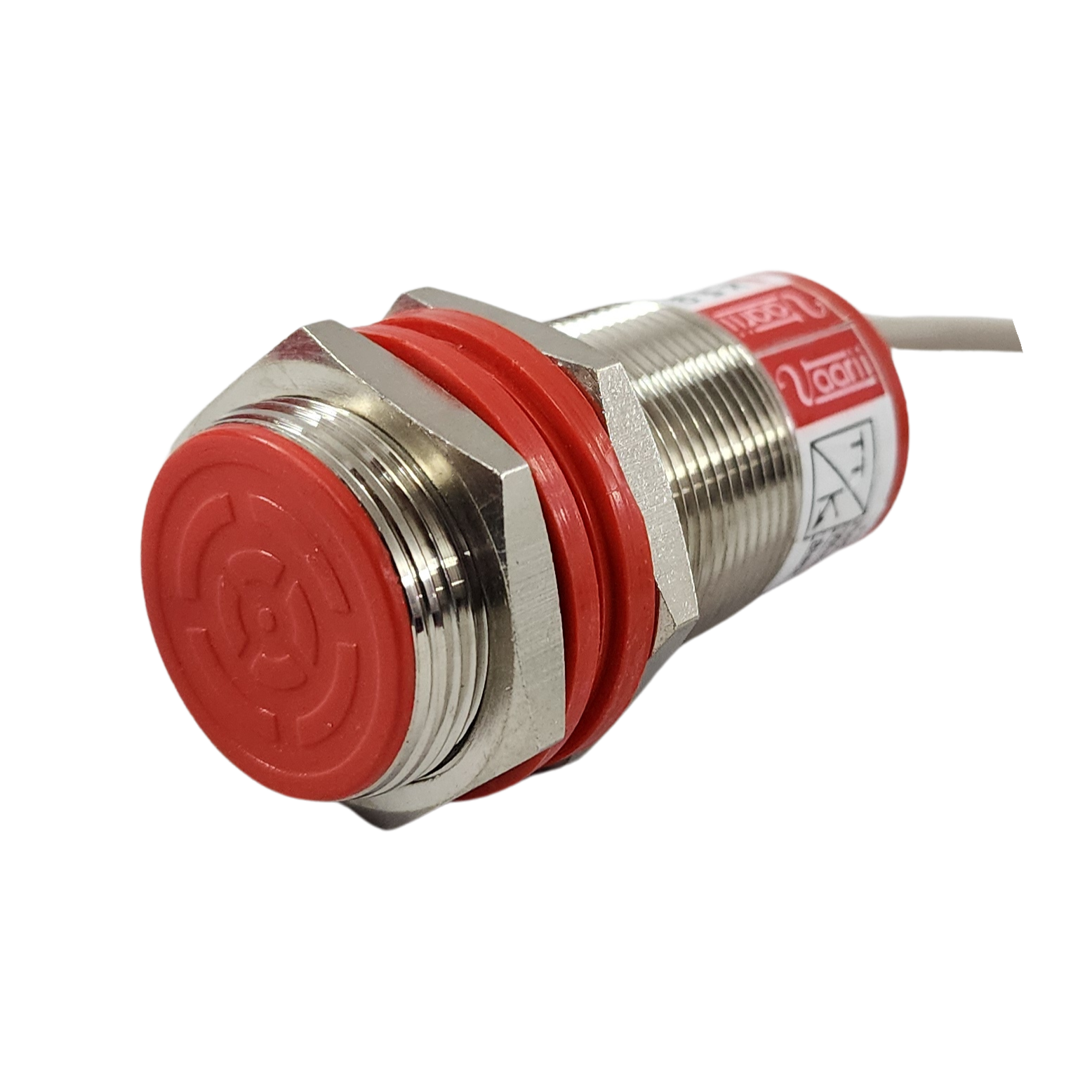

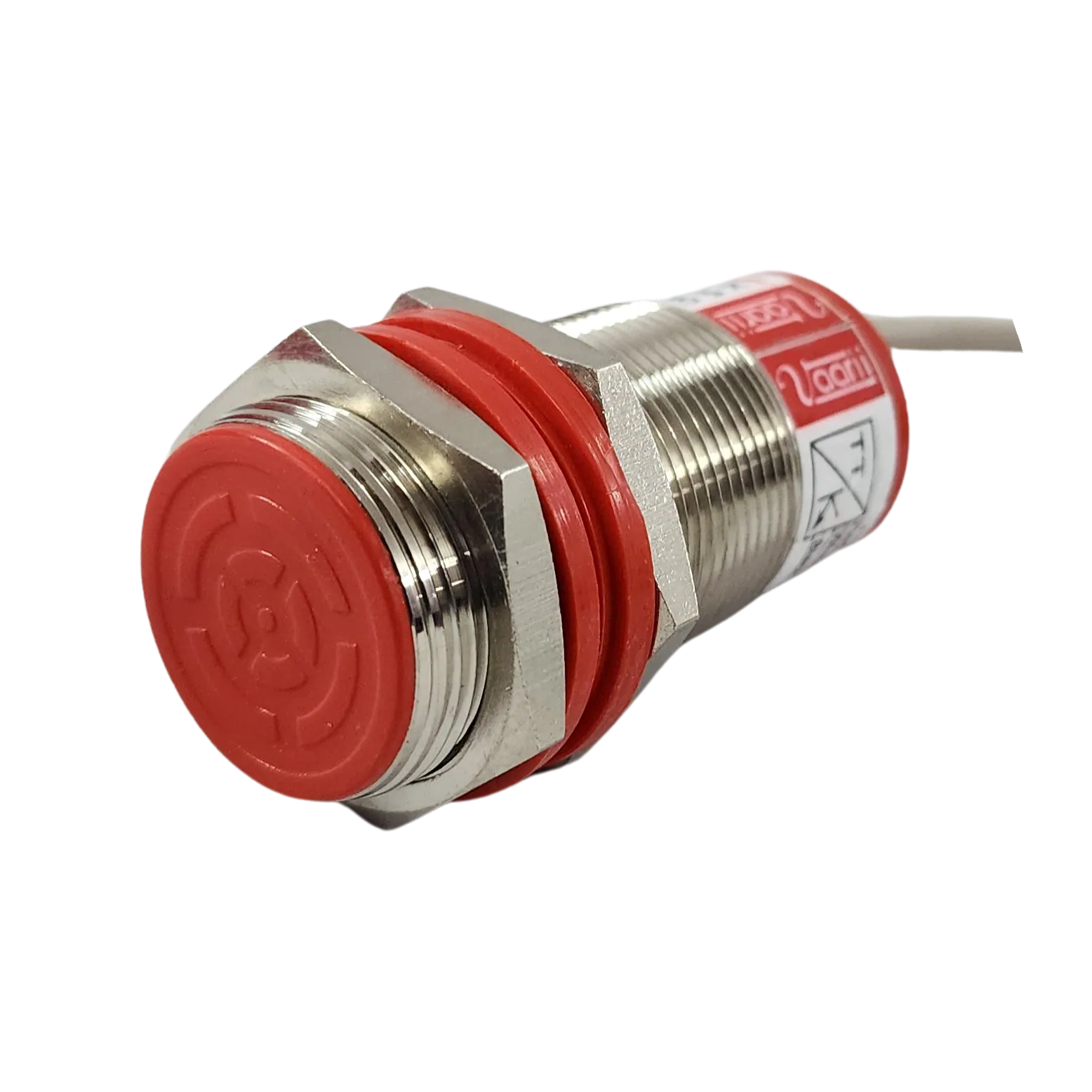

M30 DC NPN FLUSH

M30 DC NPN FLUSH

SVA 30 DC NPN FLUSH

Rated Operating Distance10 mm ± 10%

Output Logic/Switching Element FunctionNPN, NO / NC

Supply Voltage10-30 VDC

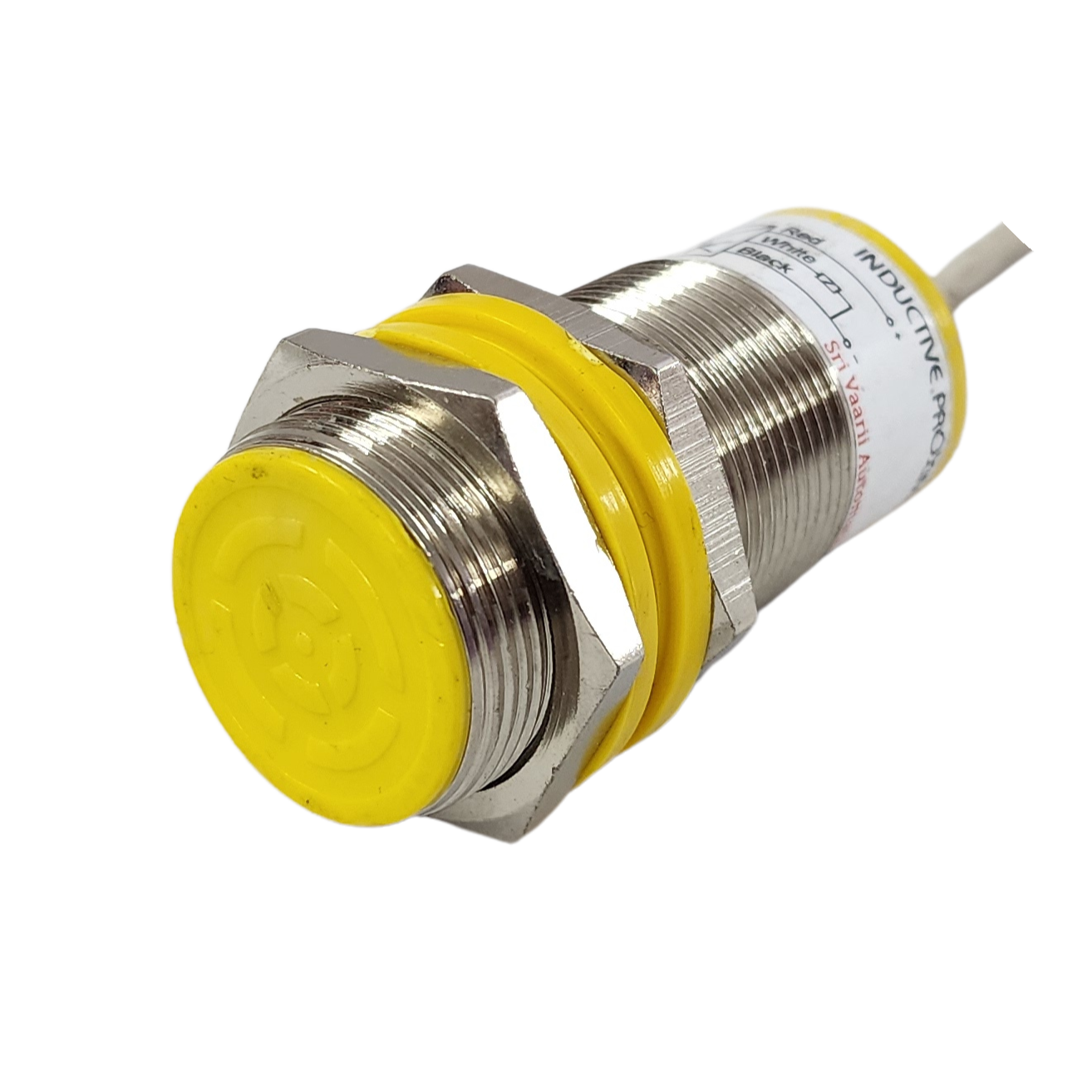

M30 DC PNP FLUSH

M30 DC PNP FLUSH

SVA 30 DC PNP FLUSH

Rated Operating Distance10 mm ± 10%

Output Logic/Switching Element FunctionPNP, NO / NC

Supply Voltage10-30 VDC

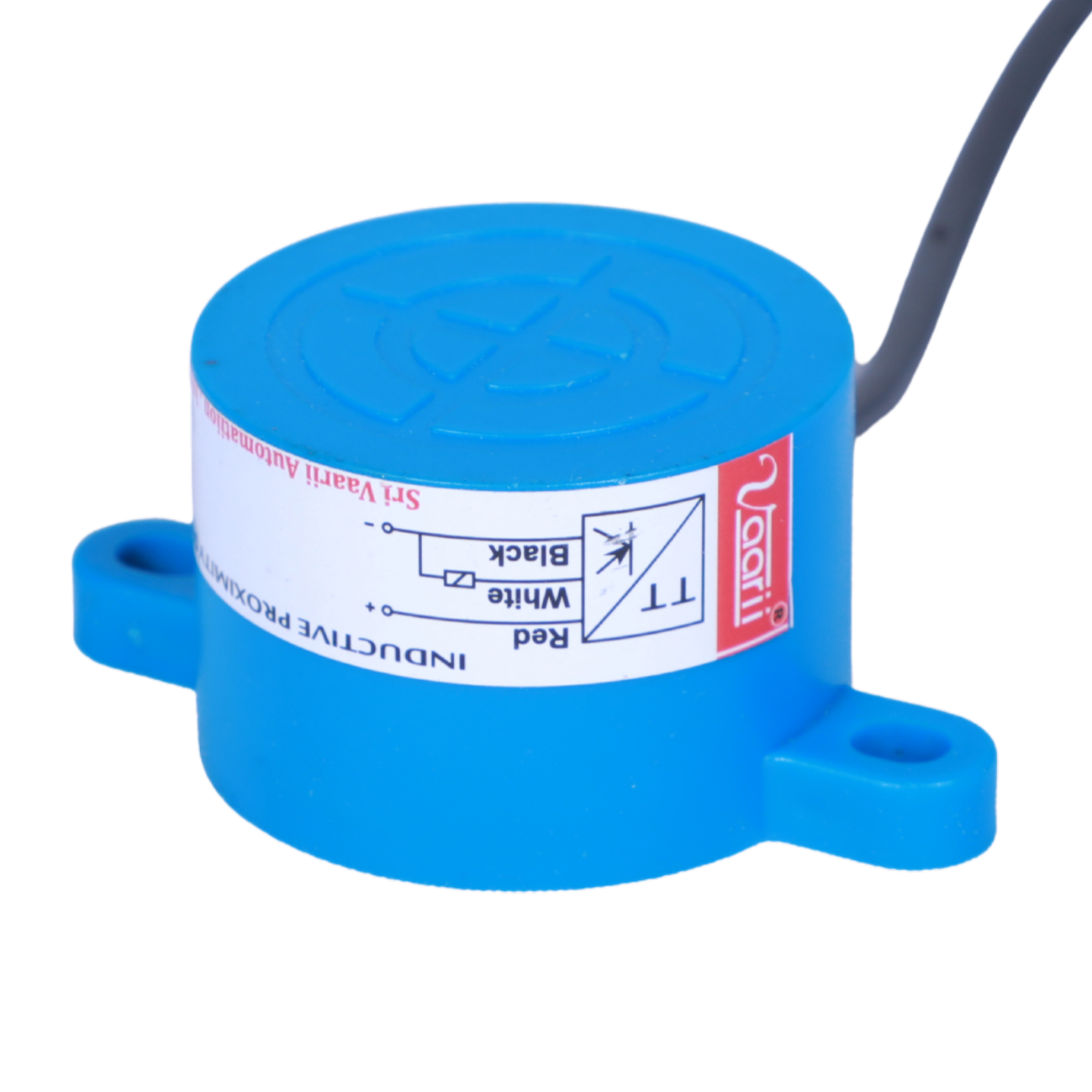

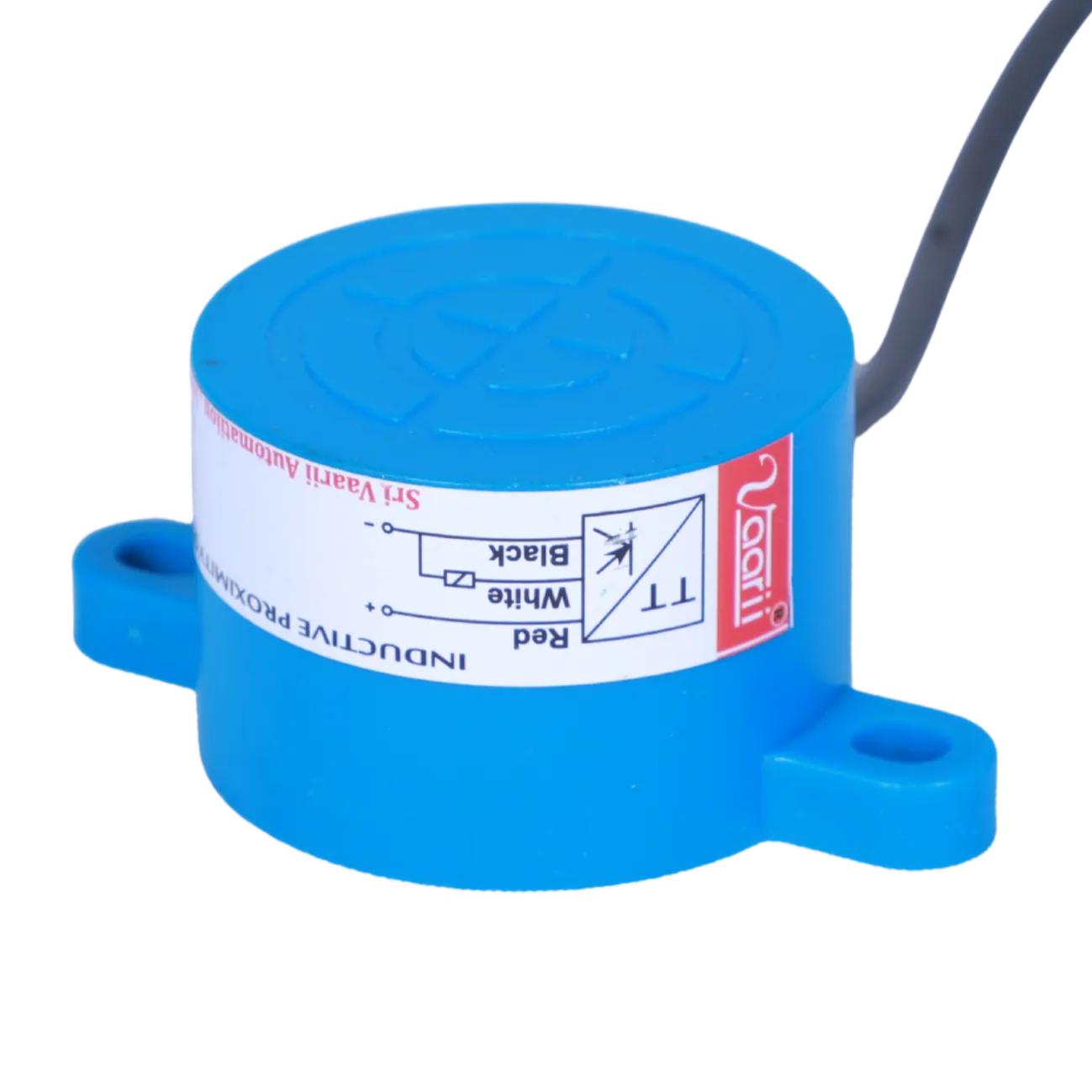

M30 DC (For Casting Molding Machine)

M30 DC (For Casting Molding Machine)

SVA 30 DC CMM

Rated Operating Distance110 mm ± 10%

Output Logic/Switching Element FunctionPNP / NPN, NO / NC

Supply Voltage10-30 VDC

memory

M18 PHOTOELECTRIC

Photoelectric Sensors detect photo-optical workpieces. A photoelectric sensor emits a light beam (visible or infrared) from its light-emitting element.A reflective-type photoelectric sensor is used to detect the light beam reflected from the target. A thrubeam type sensor is used to measure the change in light quantity caused by the target crossing the optical axis.

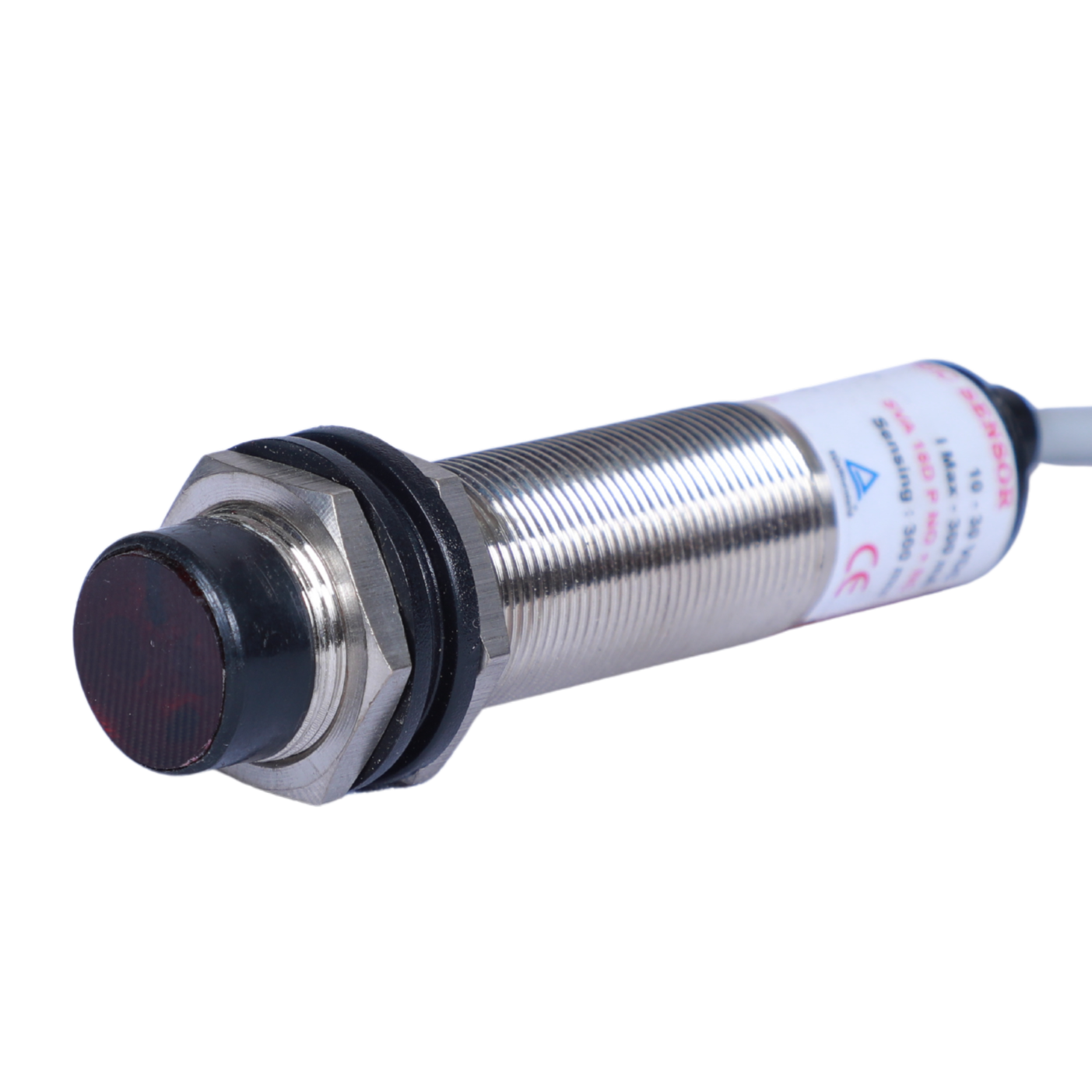

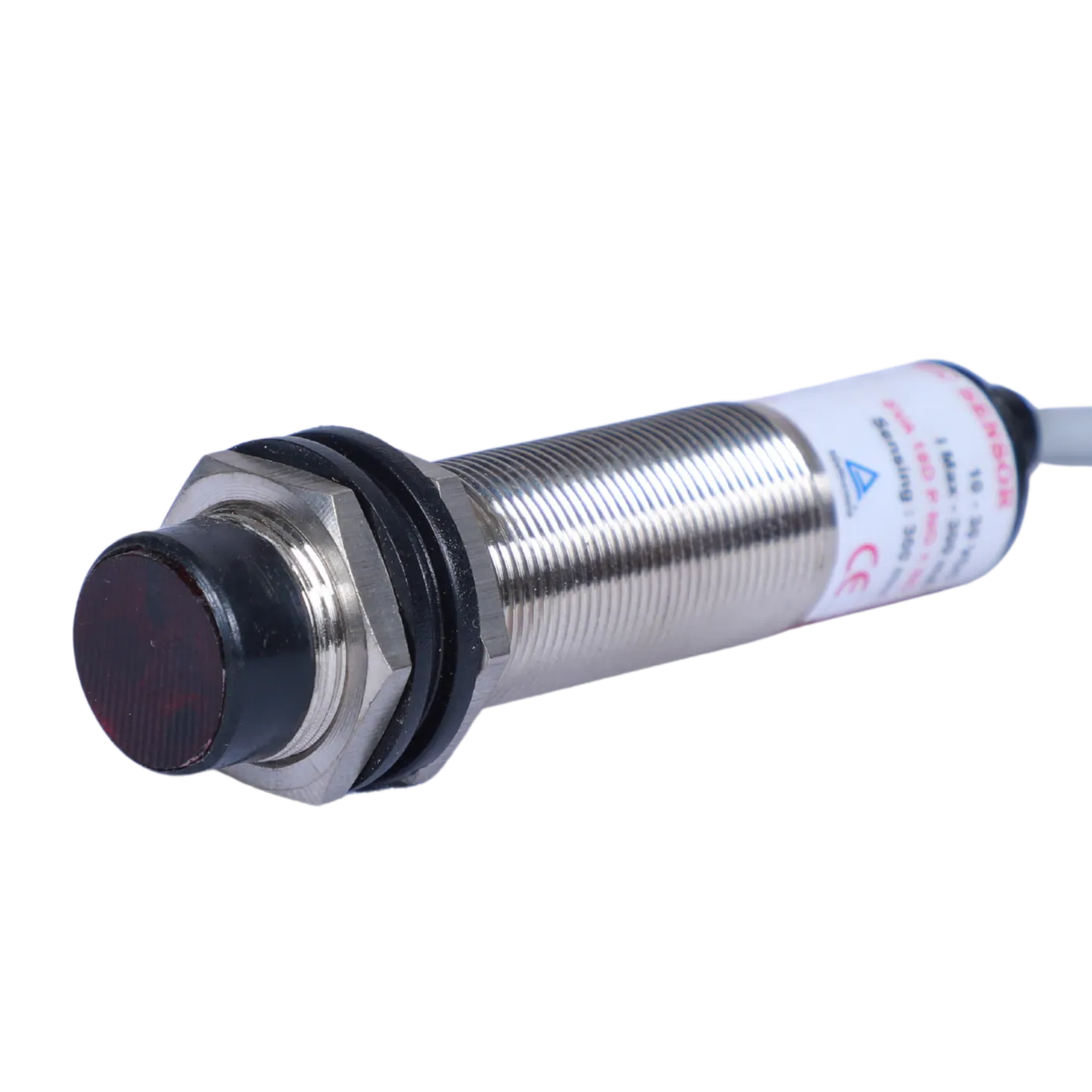

M18 Photoelectric Sensor PNP NO + NC

M18 Photoelectric Sensor PNP NO + NC

SVA 18 DC PNP NO + NC

Rated Operating Distance250mm (Adjustable) ± 10%

Output Logic/Switching Element FunctionPNP, NO + NC

Supply Voltage10-30 VDC

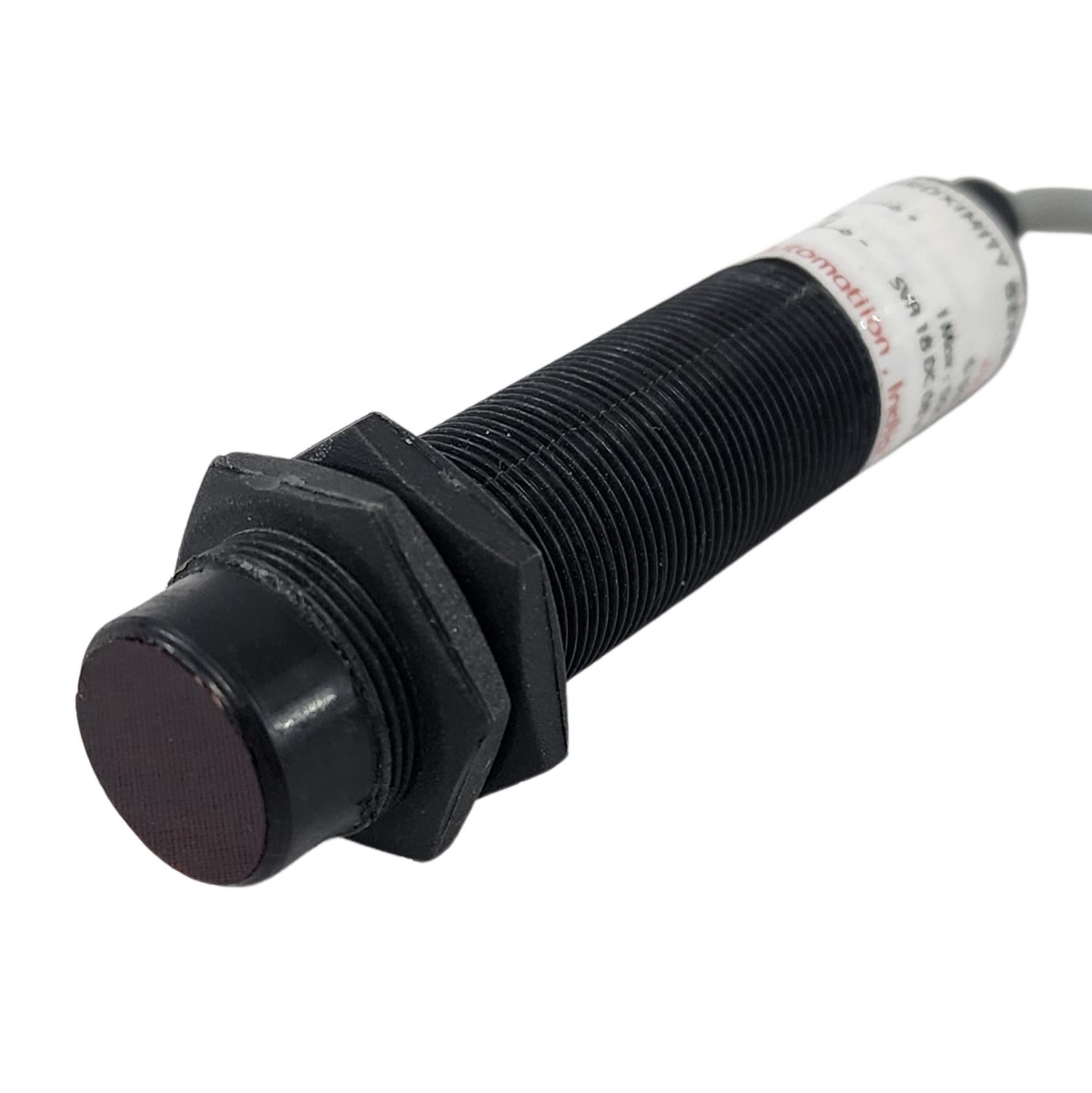

M18 Photoelectric Sensor NPN NO + NC

M18 Photoelectric Sensor NPN NO + NC

SVA 18 DC NPN NO + NC

Rated Operating Distance250mm (Adjustable) ± 10%

Output Logic/Switching Element FunctionNPN, NO + NC

Supply Voltage10-30 VDC

Need a Custom Sensor?

We customize sensing distance, output logic, voltage, and housing to match your exact application. No minimum order quantity required.
